Duct Leakage Testing Acton MA - Quick Facts
Local energy code in Acton
- Acton has been an Opt-In (Specialized Code) community since January 1, 2024, layering electrification requirements on the Stretch Code; it sits in IECC Climate Zone 5A.
- Beyond the Stretch baseline, new mixed-fuel homes must be pre-wired for future electrification and add on-site solar where there is significant unshaded roof space.
- All-electric new homes must use heat pumps for space heating and hot water; fossil-fuel homes over 4,000 sq ft must reach net-zero (HERS 0), and new multifamily over 12,000 sq ft must meet Passive House.
- Acton also participates in the Massachusetts Municipal Fossil Fuel-Free Building Demonstration Program - new construction and major renovations must be built fossil-fuel-free (all-electric), a step beyond the Specialized Code.
Duct leakage requirement in Acton
- Acton permits under the Massachusetts Stretch Code cap duct leakage at 4 CFM25 per 100 sq ft of conditioned floor area.
- Testing is required unless the entire duct system and air handler sit inside conditioned space; a rough-in test and a final test may both apply.
- Results in 24-48 hours with clear pass/fail documentation, filed with the Acton building department.
- From $350 for the first ducted system, often bundled with blower door testing and a full HERS rating.
What you can get back: 2026 Mass Save
- Duct and blower door results feed the HERS rating that unlocks Mass Save all-electric incentives: $7,500 to $25,000 per new single-family home and $1,000 to $3,750 per multifamily unit.
- Incentives require a Mass Save-approved, RESNET-certified HERS rater.
RESNET-certified · 15,000+ ratings completed · 5.0 stars across 136 Google reviews · (617) 501-6788
Duct Leakage Testing Acton MA
Professional duct blaster testing across Acton and Middlesex County, verifying your ductwork meets the Massachusetts code limit.
Duct Leakage Requirements in Acton
Acton enforces the Massachusetts Specialized (Opt-In) Code, which uses the same duct leakage limit as the Stretch Code: 4.0 CFM25 per 100 square feet of total leakage, or 3.0 at rough-in before the air handler is installed. Our raters measure your ductwork in CFM25 and document a clear pass against the 4.0 CFM25 per 100 sq ft limit.
| Project / code tier | Duct leakage limit | What is tested |
|---|---|---|
| Base energy code | 4.0 CFM25 / 100 sq ft | Total leakage (ducts outside conditioned space) |
| Stretch Code | 4 CFM25 / 100 sq ft (total) | Total leakage (leakage to outside is not a code option) |
| Rough-in test, air handler not installed | 3.0 CFM25 / 100 sq ft | Total leakage (Stretch and Specialized) |
| Ducts fully inside envelope | 8.0 CFM25 / 100 sq ft (test still required) | Air handler + ducts in conditioned space |
IECC Duct Leakage Thresholds Reference
Beyond the Massachusetts tier that applies in Acton, these are the federal IECC duct-leakage limits across code editions. All values are CFM at 25 Pascals (CFM25) per 100 sq ft of conditioned floor area (CFA) unless noted.
2009 IECC
| Test stage | Measurement | Leakage limit |
|---|---|---|
| Postconstruction Leakage Test | Duct Leakage to Outdoors | ≤ 8 CFM25 / 100 sq ft CFA |
| Rough-in with AHU | Total Duct Leakage | ≤ 6 CFM25 / 100 sq ft CFA |
| Rough-in without AHU | Total Duct Leakage | ≤ 4 CFM25 / 100 sq ft CFA |
2012, 2015, 2018 & 2021 IECC — Prescriptive Paths
| Test stage | Measurement | Leakage limit |
|---|---|---|
| Postconstruction Leakage Test | Total Duct Leakage | ≤ 4 CFM25 / 100 sq ft CFA |
| Rough-in with AHU | Total Duct Leakage | ≤ 4 CFM25 / 100 sq ft CFA |
| Rough-in without AHU | Total Duct Leakage | ≤ 3 CFM25 / 100 sq ft CFA |
2015 & 2018 IECC — Performance Path (Cost Compliance)
Leakage testing is required unless all ducts and air handlers are located entirely within the thermal envelope. There is no pass/fail threshold for duct leakage on the performance path.
2024 IECC — Prescriptive Path
| Conditioned floor area | Condition at test | Total leakage limit |
|---|---|---|
| >1,000 sq ft CFA | Space-conditioning equipment not installed | < 3 return grilles: ≤ 3 CFM · 3+ return grilles: ≤ 4 CFM |
| >1,000 sq ft CFA | All components installed | < 3 return grilles: ≤ 4 CFM · 3+ return grilles: ≤ 6 CFM |
| >1,000 sq ft CFA | Equipment not installed, ducts entirely in conditioned space | < 3 return grilles: ≤ 6 CFM · 3+ return grilles: ≤ 8 CFM |
| >1,000 sq ft CFA | All components entirely in conditioned space | < 3 return grilles: ≤ 8 CFM · 3+ return grilles: ≤ 12 CFM |
| ≤1,000 sq ft CFA | Equipment not installed | ≤ 30 CFM |
| ≤1,000 sq ft CFA | All components installed | ≤ 40 CFM |
| ≤1,000 sq ft CFA | Equipment not installed, ductwork entirely in conditioned space | ≤ 60 CFM |
| ≤1,000 sq ft CFA | All components entirely in conditioned space | ≤ 80 CFM |
How Duct Leakage Testing Works in Acton
A duct blaster seals off your HVAC system and pressurizes it to 25 Pascals. The airflow needed to hold that pressure is your leakage rate in CFM25 — the lower the number, the tighter the ducts.
Common Sources of Duct Leakage We Check in Acton
Most duct leakage comes from a short list of predictable weak points. Knowing where to look is what turns a CFM25 number into a fixable list of locations.
Boot & register connections
The joint where a duct boot meets the drywall is the single most common leak point — often left unsealed behind the register grille.
Plenum & air-handler seams
Sheet-metal plenums and the cabinet of the air handler leak at seams and access panels unless mastic-sealed.
Disconnected flex runs
Flexible ducts can pull loose at collars or get crushed above insulation, dumping conditioned air into the attic.
Panned-joist returns
Return cavities framed from floor joists or wall studs are notoriously leaky and can draw in unconditioned air.
Building-cavity returns
Using framing cavities as return ducts pulls air from attics, garages, or crawlspaces instead of living space.
Trunk-line joints
Long supply trunks flex and separate at joints over time, especially where they were only taped rather than sealed with mastic.
Why Tight Ducts Keep Heat In Your Acton Home
In Acton, leaky ducts quietly waste a large share of what your furnace or heat pump produces, sending warm or cool air into spaces no one lives in.
Once the ducts test tight, the heat you pay for stays in the living space, the system cycles less, and utility bills settle down.
What Your Acton Duct Test Report Includes
You get a document your building department and HERS software will accept the first time — not just a number.
- ✓Measured total duct leakage in CFM at 25 Pascals (CFM25)
- ✓Leakage normalized per 100 sq ft of conditioned floor area
- ✓Clear pass/fail against the 4.0 CFM25 limit that applies in Acton
- ✓The test method used (rough-in or post-construction) per ANSI/RESNET/ICC 380
- ✓Documentation formatted for your HERS rating and building-permit file
- ✓A punch list of leak locations if a re-seal and retest is needed
Best Fit for Projects Like
- Acton new-construction homes needing a duct test to complete the HERS rating
- Retest visits after sealing failing seams and boots to confirm compliance
- Custom homes with complex duct runs that need verification before final inspection
- Homes switching to a heat pump where duct tightness protects the new system's output
- Heating and cooling alterations that add or extend ductwork in Acton
Duct Leakage Testing Acton MA Facts
- Return-side leaks in the mechanical room can pull combustion byproducts back into the home, so tight returns are a health-and-safety issue, not just an efficiency one.
- Return-side leaks are especially costly, drawing unconditioned attic or crawlspace air directly into the air handler.
- The ENERGY STAR savings model assumes a typical unsealed home leaks about 23% of its total system airflow before duct sealing.
- Sealing before insulating and closing walls keeps the most expensive-to-reach leaks accessible during construction.
Trusted for Duct Leakage Testing Acton MA
Our Massachusetts Service Locations
Serving clients from our Massachusetts locations in Everett, Somerville, and Framingham.
Everett Location
371 Main St
Everett, MA 02149
Somerville Location
519 Broadway
Somerville, MA 02145
Framingham Location
68 South St
Framingham, MA 01702
Duct Leakage Testing for Acton Homes
Acton moved from the Stretch Code to the Specialized (Opt-In) Code on January 1, 2024. Since March 21, 2024 the town has also been part of the state's fossil-fuel-free building demonstration program, which generally requires new construction and major renovations to be all-electric. As a result, new homes and major renovations in Acton rely on electric heating and cooling, such as heat pumps.
The duct rules are simple: every ducted system gets a total duct leakage test. The limit is 4.0 CFM25 per 100 sq ft of conditioned floor area, or 8.0 CFM25 per 100 sq ft when the air handler and all ducts sit inside conditioned space. The higher limit does not remove the test.
Rough-in first, final second
We like to test at rough-in, after the ducts are sealed but before insulation and drywall, so a leaking boot or loose collar can be fixed on the spot. The final test on the finished system goes into the HERS rating file. Heat pumps deliver air at milder temperatures than a furnace, so a leaky system shows up quickly as rooms that never feel quite right, and it pushes the HERS score up.
Where Acton ducts leak
Acton's 2020 Housing Production Plan reports that about 70% of homes are single-family and roughly 40% were built in the 1960s and 1970s. Adding central air or a ducted heat pump to a house of that era usually means attic or basement duct runs, so we pay close attention to boot-to-drywall gaps, flex duct connections, trunk seams and air handler access panels.
Getting to the final inspection
The Acton Building Department at 472 Main Street takes permits through its OpenGov portal and asks for inspection requests at least 24 hours ahead, with the address, permit number and inspection type. Electrical, plumbing, health and fire sign-offs belong on the permit card before the building final, so it pays to have the duct report in hand early. Eversource supplies electricity and National Grid supplies gas in Acton; both are Mass Save sponsors. Our nearest office is in Marlborough at 272 Lincoln St C1.
Real duct leakage tests by HEEC for Acton projects

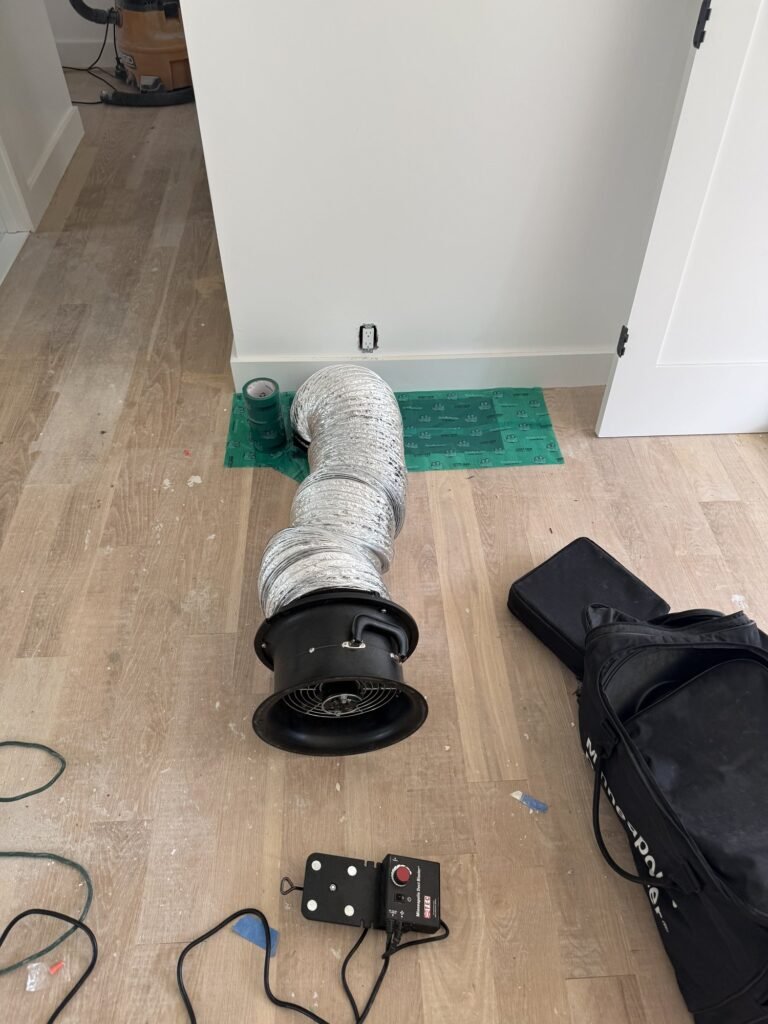

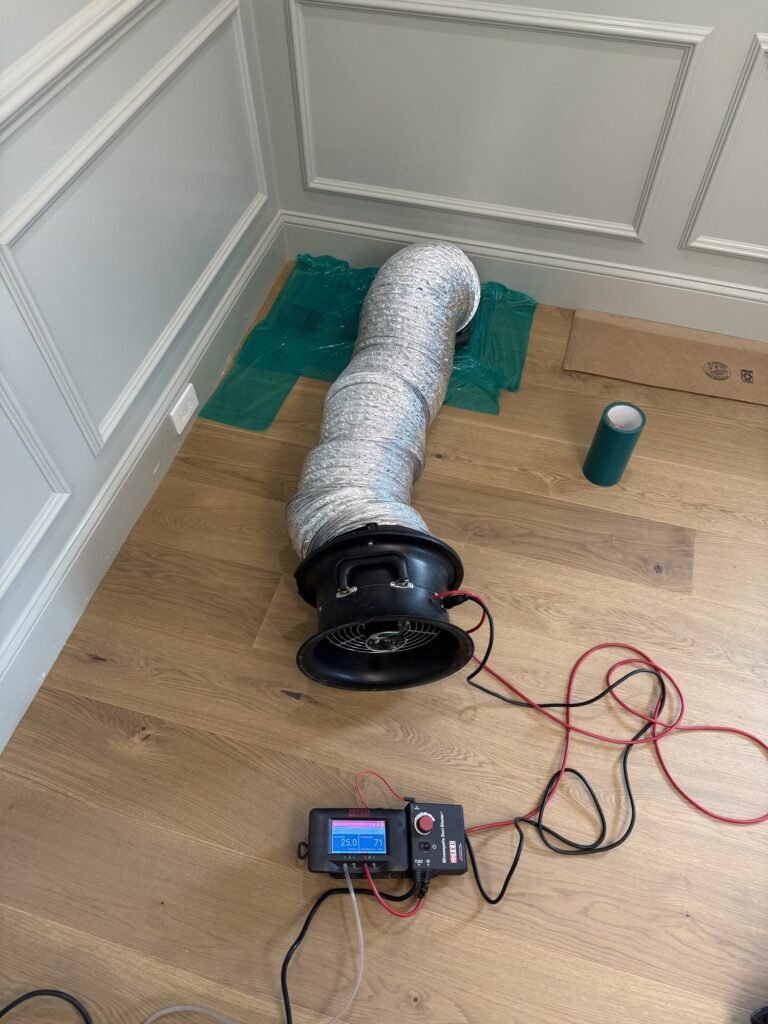

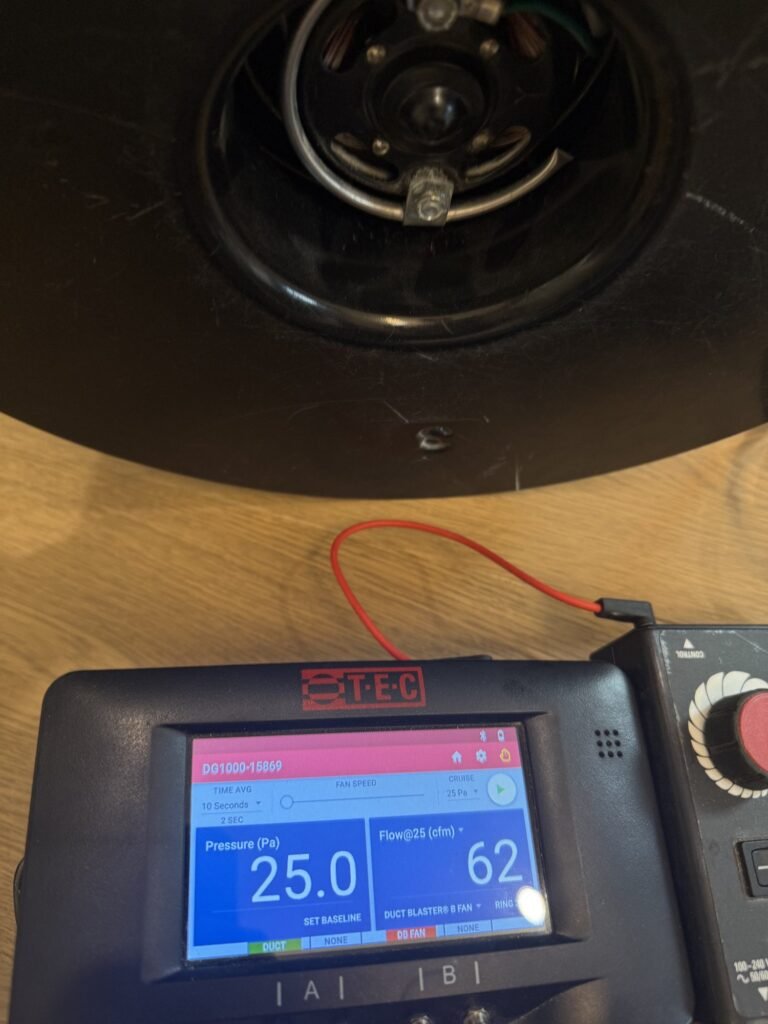

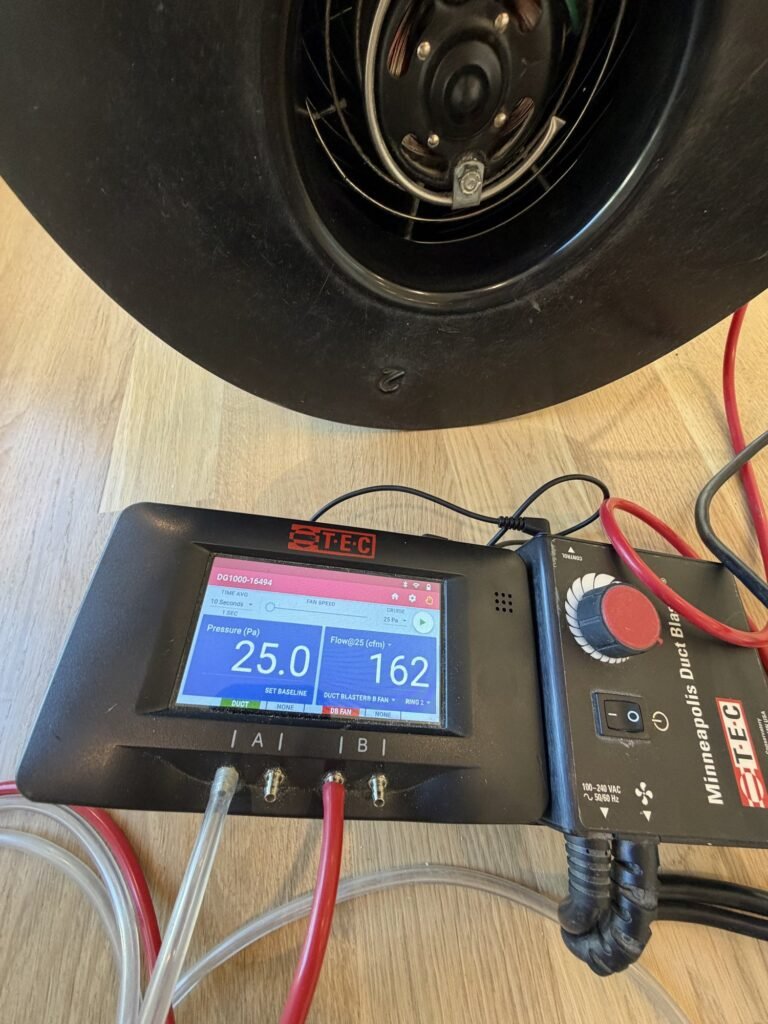

These are photos from Home Energy Efficiency Consultants duct leakage testing jobs in Massachusetts — the same equipment and setup our certified raters bring to Acton homes.
Duct Leakage Testing Acton MA FAQ
Duct Leakage Test Requirements for Acton Projects
Acton is one of the 60 Massachusetts communities on the Specialized (Opt-In) Code. New homes there are built on the same 225 CMR 22.00 testing requirements below, plus net-zero-ready provisions.
| Test | Limit (CFM25 per 100 sq ft of conditioned floor area) | Notes |
|---|---|---|
| Rough-in, air handler installed | 4.0 total leakage | ANSI/RESNET/ICC 380 or ASTM E1554 |
| Rough-in, air handler not installed | 3.0 total leakage | Air handler added later |
| Post-construction | 4.0 total leakage | Final test with the system complete |
| Ducts and air handler entirely inside the thermal envelope | 8.0 total leakage | Test is still required |
| Ventilation-only ducts | Exempt | Only if not tied into heating or cooling ducts |
Massachusetts measures total duct leakage; "leakage to outside" is not a code option. Under the Massachusetts amendment to R403.3.5, the test must be done by a HERS Rater, HERS Rating Field Inspector or BPI Certified Professional, with a signed report to the Acton building department. Mechanical ventilation airflow must also be tested and verified by a HERS Rater under R403.6.3.
Sources: 225 CMR 22.00 (2025 edition) and the 2021 IECC sections listed. Acton is in Middlesex County, served from our Somerville (519 Broadway) office.
Duct Leakage Questions from Acton Builders
What is the duct leakage limit for a new home in Acton?
4.0 CFM25 of total leakage per 100 square feet of conditioned floor area, at rough-in or after construction. If the air handler is not installed at rough-in the limit is 3.0, and if every duct and the air handler are inside the thermal envelope the limit is 8.0.
Can leakage to outside be used instead of total leakage?
No. The Massachusetts code (225 CMR 22.00 R403.3.5) measures total duct leakage. Leakage-to-outside tests are used by some programs, but not for code compliance here.
Who can perform the duct test in Massachusetts?
A HERS Rater, a HERS Rating Field Inspector or a BPI Certified Professional, under the Massachusetts amendment to R403.3.5. The tester signs a written report for the code official.
Is a duct test required if all ducts are inside conditioned space?
Yes. Massachusetts follows the 2021 IECC, which still requires the test but allows up to 8.0 CFM25 per 100 square feet when the ducts and air handler are entirely inside the thermal envelope.
Rough-in or final: which test is better?
A rough-in test catches leaks while every joint is still reachable, so fixes are cheap. A post-construction test confirms the finished system. Many builders do both to avoid surprises at final.
How much does duct leakage testing cost in Acton?
Our duct testing is $350 for the first ducted system and $250 for each additional system at the same address. It can be done in the same visit as the blower door test and HERS inspection.
Related: Blower door testing in Acton · HERS rating in Acton · Stretch Code help in Acton
Get Started With Duct Leakage Testing Acton MA
Fast scheduling and permit-ready CFM25 reports for Acton and all of Middlesex County.
Call 617-501-6788
Mass Save®-Listed HERS Rater
U.S. DOE Efficient New HomeTrusted Partner — Verified
ENERGY STAR®Partner
Phius CertifiedPassive House Verifier
ICCMember★★★★★136 Google
Reviews
The Phius Certified Verifier logo is used under license from Phius.
HERS Ratings Across Acton and Nearby Communities
Home Energy Efficiency Consultants rates new homes, additions, and major renovations throughout Acton — including West Acton, South Acton, Acton Center, and East Acton. Every Acton project is filed with the Town of Acton Building Department, and we handle the energy model, blower door and duct leakage testing, and the compliance paperwork from start to finish.
We also serve the communities right around Acton, including Concord, Maynard, Boxborough, Littleton, and Stow. Our Marlborough office at 272 Lincoln St is the closest of our four Massachusetts locations — see our Marlborough office or call (617) 501-6788 to get a Acton rating on the schedule.
Acton Specialized Energy Code — HERS Index Targets
Acton enforces the Massachusetts Specialized (Opt-In) Energy Code. The required HERS score depends on fuel type and project scope — a lower index is stricter. As a fossil-fuel-free community, new construction in Acton must be built all-electric, so the all-electric columns apply.
| Project type | Mixed-fuel | Mixed-fuel + solar | All-electric | All-electric + solar |
|---|---|---|---|---|
| New construction | HERS 42 | 42 | 45 | 45 |
| New construction — embodied-carbon credit | 45 | 45 | 48 | 48 |
| Accessory dwelling unit (ADU) | 52 | 55 | 55 | 58 |
| Major alteration / renovation / change of use | 65 | 70 | 70 | 75 |
A HERS rating is triggered by new construction, additions over 1,000 sq ft (or more than 100% of the existing conditioned area), and Level 3 alterations over 1,000 sq ft affecting more than 50% of the home. New homes must also pass a blower-door test at 3.0 ACH50 and include electrification-ready wiring for heat pumps, EV charging, and solar. We model your Acton project up front so you know the exact target and the fastest path to hit it — call (617) 501-6788.
