Duct Leakage Testing Agawam MA - Quick Facts
Local energy code in Agawam
- Agawam enforces the Massachusetts Stretch Energy Code for new construction and major renovations. IECC Climate Zone 5A.
- Massachusetts has three energy-code levels - base (2021 IECC), Stretch, and Specialized (Opt-In) - and Agawam is on the Stretch Code.
Duct leakage requirement in Agawam
- Agawam permits under the Massachusetts Stretch Code cap duct leakage at 4 CFM25 per 100 sq ft of conditioned floor area.
- Testing is required unless the entire duct system and air handler sit inside conditioned space; a rough-in test and a final test may both apply.
- Results in 24-48 hours with clear pass/fail documentation, filed with the Agawam building department.
- From $350 for the first ducted system, often bundled with blower door testing and a full HERS rating.
2026 Mass Save incentives in Agawam
- Duct and blower door results feed the HERS rating that unlocks Mass Save all-electric incentives: $7,500 to $25,000 per new single-family home and $1,000 to $3,750 per multifamily unit.
- Incentives require a Mass Save-approved, RESNET-certified HERS rater.
RESNET-certified · 15,000+ ratings completed · 5.0 stars across 136 Google reviews · (617) 501-6788
Duct Leakage Testing Agawam MA
Certified duct leakage testing for Agawam, measured with a calibrated duct blaster and documented for your permit and HERS rating.
Duct Leakage Requirements in Agawam
Agawam follows the Massachusetts Stretch Code, which caps total duct leakage at 4 CFM25 per 100 square feet. Our raters measure your ductwork in CFM25 and document a clear pass against the 4 CFM25 per 100 sq ft limit.
| Project / code tier | Duct leakage limit | What is tested |
|---|---|---|
| Base energy code | 4.0 CFM25 / 100 sq ft | Total leakage (ducts outside conditioned space) |
| Stretch Code | 4 CFM25 / 100 sq ft (total) | Total leakage (leakage to outside is not a code option) |
| Rough-in test, air handler not installed | 3.0 CFM25 / 100 sq ft | Total leakage (Stretch and Specialized) |
| Ducts fully inside envelope | 8.0 CFM25 / 100 sq ft (test still required) | Air handler + ducts in conditioned space |
IECC Duct Leakage Thresholds Reference
Beyond the Massachusetts tier that applies in Agawam, these are the federal IECC duct-leakage limits across code editions. All values are CFM at 25 Pascals (CFM25) per 100 sq ft of conditioned floor area (CFA) unless noted.
2009 IECC
| Test stage | Measurement | Leakage limit |
|---|---|---|
| Postconstruction Leakage Test | Duct Leakage to Outdoors | ≤ 8 CFM25 / 100 sq ft CFA |
| Rough-in with AHU | Total Duct Leakage | ≤ 6 CFM25 / 100 sq ft CFA |
| Rough-in without AHU | Total Duct Leakage | ≤ 4 CFM25 / 100 sq ft CFA |
2012, 2015, 2018 & 2021 IECC — Prescriptive Paths
| Test stage | Measurement | Leakage limit |
|---|---|---|
| Postconstruction Leakage Test | Total Duct Leakage | ≤ 4 CFM25 / 100 sq ft CFA |
| Rough-in with AHU | Total Duct Leakage | ≤ 4 CFM25 / 100 sq ft CFA |
| Rough-in without AHU | Total Duct Leakage | ≤ 3 CFM25 / 100 sq ft CFA |
2015 & 2018 IECC — Performance Path (Cost Compliance)
Leakage testing is required unless all ducts and air handlers are located entirely within the thermal envelope. There is no pass/fail threshold for duct leakage on the performance path.
2024 IECC — Prescriptive Path
| Conditioned floor area | Condition at test | Total leakage limit |
|---|---|---|
| >1,000 sq ft CFA | Space-conditioning equipment not installed | < 3 return grilles: ≤ 3 CFM · 3+ return grilles: ≤ 4 CFM |
| >1,000 sq ft CFA | All components installed | < 3 return grilles: ≤ 4 CFM · 3+ return grilles: ≤ 6 CFM |
| >1,000 sq ft CFA | Equipment not installed, ducts entirely in conditioned space | < 3 return grilles: ≤ 6 CFM · 3+ return grilles: ≤ 8 CFM |
| >1,000 sq ft CFA | All components entirely in conditioned space | < 3 return grilles: ≤ 8 CFM · 3+ return grilles: ≤ 12 CFM |
| ≤1,000 sq ft CFA | Equipment not installed | ≤ 30 CFM |
| ≤1,000 sq ft CFA | All components installed | ≤ 40 CFM |
| ≤1,000 sq ft CFA | Equipment not installed, ductwork entirely in conditioned space | ≤ 60 CFM |
| ≤1,000 sq ft CFA | All components entirely in conditioned space | ≤ 80 CFM |
How Duct Leakage Testing Works in Agawam
A duct blaster seals off your HVAC system and pressurizes it to 25 Pascals. The airflow needed to hold that pressure is your leakage rate in CFM25 — the lower the number, the tighter the ducts.
Common Sources of Duct Leakage We Check in Agawam
Most duct leakage comes from a short list of predictable weak points. Knowing where to look is what turns a CFM25 number into a fixable list of locations.
Boot & register connections
The joint where a duct boot meets the drywall is the single most common leak point — often left unsealed behind the register grille.
Plenum & air-handler seams
Sheet-metal plenums and the cabinet of the air handler leak at seams and access panels unless mastic-sealed.
Disconnected flex runs
Flexible ducts can pull loose at collars or get crushed above insulation, dumping conditioned air into the attic.
Panned-joist returns
Return cavities framed from floor joists or wall studs are notoriously leaky and can draw in unconditioned air.
Building-cavity returns
Using framing cavities as return ducts pulls air from attics, garages, or crawlspaces instead of living space.
Trunk-line joints
Long supply trunks flex and separate at joints over time, especially where they were only taped rather than sealed with mastic.
Why Tight Ducts Keep Heat In Your Agawam Home
In Agawam, leaky ducts quietly waste a large share of what your furnace or heat pump produces, sending warm or cool air into spaces no one lives in.
Sealing those leaks — verified by a duct test — keeps the conditioned air inside the system, so rooms hold temperature, run times drop, and equipment lasts longer.
What Your Agawam Duct Test Report Includes
You get a document your building department and HERS software will accept the first time — not just a number.
- ✓A punch list of leak locations if a re-seal and retest is needed
- ✓Measured total duct leakage in CFM at 25 Pascals (CFM25)
- ✓Leakage normalized per 100 sq ft of conditioned floor area
- ✓Clear pass/fail against the 4.0 CFM25 limit that applies in Agawam
- ✓The test method used (rough-in or post-construction) per ANSI/RESNET/ICC 380
- ✓Documentation formatted for your HERS rating and building-permit file
Best Fit for Projects Like
- Whole-home renovations pursuing energy-code sign-off in Hampden County
- Retest visits after sealing failing seams and boots to confirm compliance
- Homeowners chasing comfort fixes for hot-and-cold rooms caused by duct leaks
- Homes switching to a heat pump where duct tightness protects the new system's output
- Heating and cooling alterations that add or extend ductwork in Agawam
Duct Leakage Testing Agawam MA Facts
- A tight duct system lets a right-sized furnace or heat pump deliver its full rated output to the rooms that need it.
- The Leakage-to-Outside test pressurizes the building envelope at the same 25 Pa so only air escaping to unconditioned space is measured.
- Sealing before insulating and closing walls keeps the most expensive-to-reach leaks accessible during construction.
- The Massachusetts Stretch Code requires total duct leakage to stay at or below 4 CFM25 per 100 square feet of conditioned floor area.
Trusted for Duct Leakage Testing Agawam MA
Our Massachusetts Service Locations
Serving clients from our Massachusetts locations in Everett, Somerville, and Framingham.
Everett Location
371 Main St
Everett, MA 02149
Somerville Location
519 Broadway
Somerville, MA 02145
Framingham Location
68 South St
Framingham, MA 01702
Duct Leakage Testing for Agawam Homes
Agawam has been a Stretch Code community since January 1, 2017 and is not on the Specialized (Opt-In) Code list. Whether you are building new or adding a ducted system to an existing house, the duct test works the same way.
The numbers
Every ducted system gets a total duct leakage test. The limit is 4.0 CFM25 per 100 sq ft of conditioned floor area. When the air handler and all of the ducts are inside conditioned space, the limit is 8.0 CFM25 per 100 sq ft, but the test is still required. On a two-family house with two systems, each system is tested and reported separately.
What Agawam houses look like
Agawam's Housing Production Plan, revised in 2024, shows that about half of the town's homes were built before 1970 and about 68% are single-family detached, with two- to four-family buildings making up roughly a tenth of the stock. When central air or a ducted heat pump is added to an older house, the new duct runs usually go through attics, basements or garages. Those are the places we check hardest: boots where they meet drywall, flex duct connections, trunk seams and the air handler's access panels.
Testing at the right time
A rough-in test after the ducts are sealed, and before insulation and drywall, catches problems while they are easy to fix. The final test on the finished system becomes part of the HERS rating. Heat pumps move more air at lower supply temperatures than a furnace, so a leaky duct system costs comfort in the far rooms and raises the HERS score.
Utilities and our office
Eversource provides both electricity and natural gas in Agawam and is a Mass Save sponsor. Ask the Agawam Building Department how it wants the final inspection requested for your permit, and send us the permit number so the duct report matches. Our closest office is in Marlborough at 272 Lincoln St C1.
Real duct leakage tests by HEEC for Agawam projects

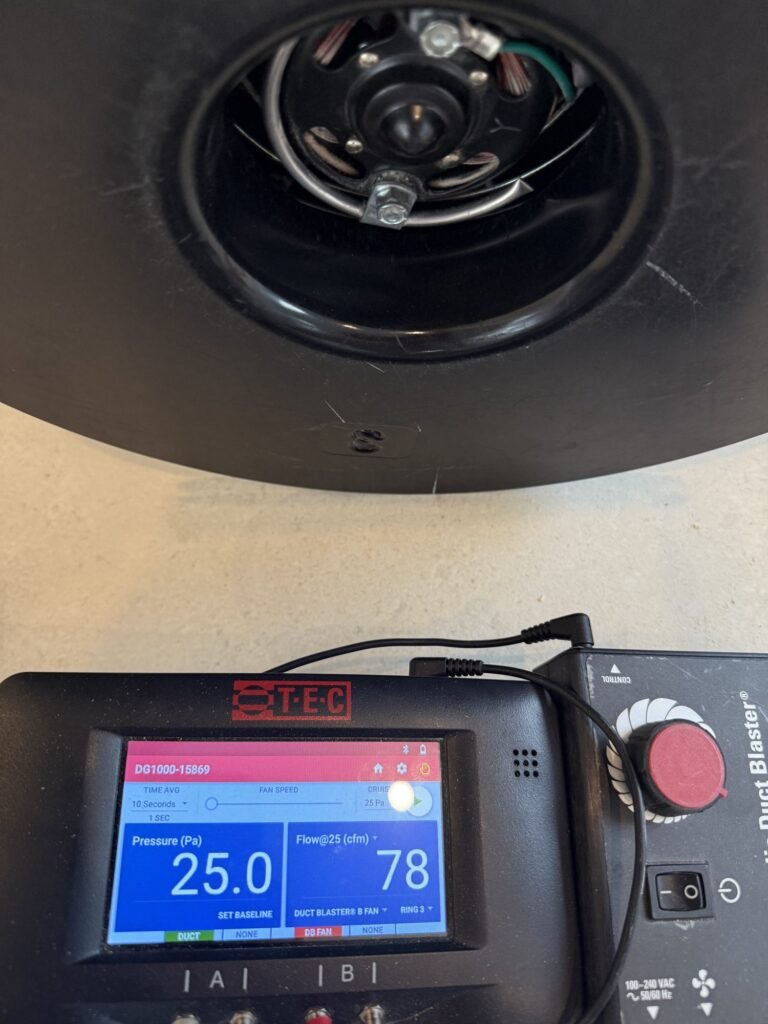

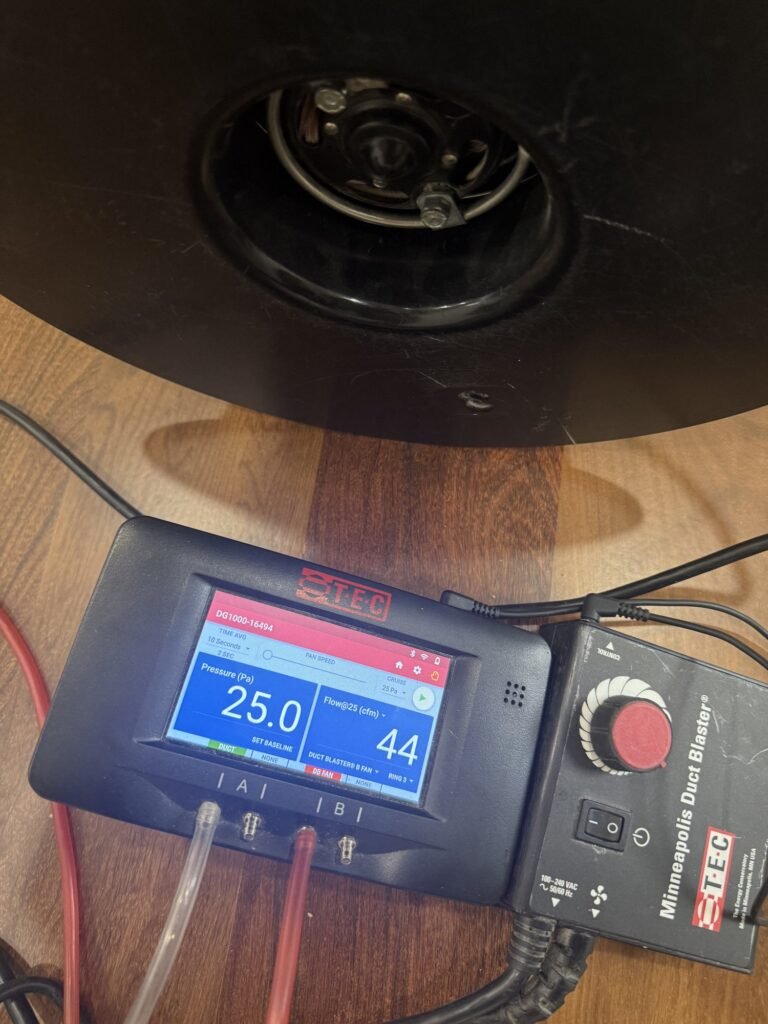

These are photos from Home Energy Efficiency Consultants duct leakage testing jobs in Massachusetts — the same equipment and setup our certified raters bring to Agawam homes.
Duct Leakage Testing Agawam MA FAQ
Duct Leakage Test Requirements for Agawam Projects
Agawam adopted the Stretch Code effective January 1, 2017 and is not on the Specialized (Opt-In) Code list, so new homes follow the Massachusetts Stretch Code (225 CMR 22.00). The testing requirements below come from 225 CMR 22.00 and the 2021 IECC it amends.
| Test | Limit (CFM25 per 100 sq ft of conditioned floor area) | Notes |
|---|---|---|
| Rough-in, air handler installed | 4.0 total leakage | ANSI/RESNET/ICC 380 or ASTM E1554 |
| Rough-in, air handler not installed | 3.0 total leakage | Air handler added later |
| Post-construction | 4.0 total leakage | Final test with the system complete |
| Ducts and air handler entirely inside the thermal envelope | 8.0 total leakage | Test is still required |
| Ventilation-only ducts | Exempt | Only if not tied into heating or cooling ducts |
Massachusetts measures total duct leakage; "leakage to outside" is not a code option. Under the Massachusetts amendment to R403.3.5, the test must be done by a HERS Rater, HERS Rating Field Inspector or BPI Certified Professional, with a signed report to the Agawam building department. Mechanical ventilation airflow must also be tested and verified by a HERS Rater under R403.6.3.
Sources: 225 CMR 22.00 (2025 edition) and the 2021 IECC sections listed. Agawam is in Hampden County, served from our Marlborough (272 Lincoln St) office.
Duct Leakage Questions from Agawam Builders
What is the duct leakage limit for a new home in Agawam?
4.0 CFM25 of total leakage per 100 square feet of conditioned floor area, at rough-in or after construction. If the air handler is not installed at rough-in the limit is 3.0, and if every duct and the air handler are inside the thermal envelope the limit is 8.0.
Can leakage to outside be used instead of total leakage?
No. The Massachusetts code (225 CMR 22.00 R403.3.5) measures total duct leakage. Leakage-to-outside tests are used by some programs, but not for code compliance here.
Who can perform the duct test in Massachusetts?
A HERS Rater, a HERS Rating Field Inspector or a BPI Certified Professional, under the Massachusetts amendment to R403.3.5. The tester signs a written report for the code official.
Is a duct test required if all ducts are inside conditioned space?
Yes. Massachusetts follows the 2021 IECC, which still requires the test but allows up to 8.0 CFM25 per 100 square feet when the ducts and air handler are entirely inside the thermal envelope.
Rough-in or final: which test is better?
A rough-in test catches leaks while every joint is still reachable, so fixes are cheap. A post-construction test confirms the finished system. Many builders do both to avoid surprises at final.
How much does duct leakage testing cost in Agawam?
Our duct testing is $350 for the first ducted system and $250 for each additional system at the same address. It can be done in the same visit as the blower door test and HERS inspection.
