Duct Leakage Testing Cambridge MA - Quick Facts
Local energy code in Cambridge
- As of July 1, 2023, Cambridge enforces the Massachusetts Specialized (Opt-In) Energy Code on top of the Stretch Code baseline - IECC Climate Zone 5A.
- The Opt-In code goes further than the Stretch baseline: new fossil-fuel homes must be pre-wired for electrification and include on-site solar where roof space allows.
- New all-electric homes rely on heat pumps for heat and hot water; large fossil-fuel homes over 4,000 sq ft must hit net-zero (HERS 0), and multifamily over 12,000 sq ft must be Passive House.
- Cambridge also participates in the Massachusetts Municipal Fossil Fuel-Free Building Demonstration Program - new construction and major renovations must be built fossil-fuel-free (all-electric), a step beyond the Specialized Code.
Duct leakage requirement in Cambridge
- Cambridge permits under the Massachusetts Stretch Code cap duct leakage at 4 CFM25 per 100 sq ft of conditioned floor area.
- Testing is required unless the entire duct system and air handler sit inside conditioned space; a rough-in test and a final test may both apply.
- Results in 24-48 hours with clear pass/fail documentation, filed with the Cambridge building department.
- From $350 for the first ducted system, often bundled with blower door testing and a full HERS rating.
Mass Save rebates for Cambridge (2026)
- Duct and blower door results feed the HERS rating that unlocks Mass Save all-electric incentives: $7,500 to $25,000 per new single-family home and $1,000 to $3,750 per multifamily unit.
- Incentives require a Mass Save-approved, RESNET-certified HERS rater.
RESNET-certified · 15,000+ ratings completed · 5.0 stars across 136 Google reviews · (617) 501-6788
Duct Leakage Testing Cambridge MA
Certified duct leakage testing for Cambridge, measured with a calibrated duct blaster and documented for your permit and HERS rating.
Duct Leakage Requirements in Cambridge
Cambridge enforces the Massachusetts Specialized (Opt-In) Code, which uses the same duct leakage limit as the Stretch Code: 4.0 CFM25 per 100 square feet of total leakage, or 3.0 at rough-in before the air handler is installed. Our raters measure your ductwork in CFM25 and document a clear pass against the 4.0 CFM25 per 100 sq ft limit.
| Project / code tier | Duct leakage limit | What is tested |
|---|---|---|
| Base energy code | 4.0 CFM25 / 100 sq ft | Total leakage (ducts outside conditioned space) |
| Stretch Code | 4 CFM25 / 100 sq ft (total) | Total leakage (leakage to outside is not a code option) |
| Rough-in test, air handler not installed | 3.0 CFM25 / 100 sq ft | Total leakage (Stretch and Specialized) |
| Ducts fully inside envelope | 8.0 CFM25 / 100 sq ft (test still required) | Air handler + ducts in conditioned space |
IECC Duct Leakage Thresholds Reference
Beyond the Massachusetts tier that applies in Cambridge, these are the federal IECC duct-leakage limits across code editions. All values are CFM at 25 Pascals (CFM25) per 100 sq ft of conditioned floor area (CFA) unless noted.
2009 IECC
| Test stage | Measurement | Leakage limit |
|---|---|---|
| Postconstruction Leakage Test | Duct Leakage to Outdoors | ≤ 8 CFM25 / 100 sq ft CFA |
| Rough-in with AHU | Total Duct Leakage | ≤ 6 CFM25 / 100 sq ft CFA |
| Rough-in without AHU | Total Duct Leakage | ≤ 4 CFM25 / 100 sq ft CFA |
2012, 2015, 2018 & 2021 IECC — Prescriptive Paths
| Test stage | Measurement | Leakage limit |
|---|---|---|
| Postconstruction Leakage Test | Total Duct Leakage | ≤ 4 CFM25 / 100 sq ft CFA |
| Rough-in with AHU | Total Duct Leakage | ≤ 4 CFM25 / 100 sq ft CFA |
| Rough-in without AHU | Total Duct Leakage | ≤ 3 CFM25 / 100 sq ft CFA |
2015 & 2018 IECC — Performance Path (Cost Compliance)
Leakage testing is required unless all ducts and air handlers are located entirely within the thermal envelope. There is no pass/fail threshold for duct leakage on the performance path.
2024 IECC — Prescriptive Path
| Conditioned floor area | Condition at test | Total leakage limit |
|---|---|---|
| >1,000 sq ft CFA | Space-conditioning equipment not installed | < 3 return grilles: ≤ 3 CFM · 3+ return grilles: ≤ 4 CFM |
| >1,000 sq ft CFA | All components installed | < 3 return grilles: ≤ 4 CFM · 3+ return grilles: ≤ 6 CFM |
| >1,000 sq ft CFA | Equipment not installed, ducts entirely in conditioned space | < 3 return grilles: ≤ 6 CFM · 3+ return grilles: ≤ 8 CFM |
| >1,000 sq ft CFA | All components entirely in conditioned space | < 3 return grilles: ≤ 8 CFM · 3+ return grilles: ≤ 12 CFM |
| ≤1,000 sq ft CFA | Equipment not installed | ≤ 30 CFM |
| ≤1,000 sq ft CFA | All components installed | ≤ 40 CFM |
| ≤1,000 sq ft CFA | Equipment not installed, ductwork entirely in conditioned space | ≤ 60 CFM |
| ≤1,000 sq ft CFA | All components entirely in conditioned space | ≤ 80 CFM |
How Duct Leakage Testing Works in Cambridge
A duct blaster seals off your HVAC system and pressurizes it to 25 Pascals. The airflow needed to hold that pressure is your leakage rate in CFM25 — the lower the number, the tighter the ducts.
Common Sources of Duct Leakage We Check in Cambridge
Most duct leakage comes from a short list of predictable weak points. Knowing where to look is what turns a CFM25 number into a fixable list of locations.
Boot & register connections
The joint where a duct boot meets the drywall is the single most common leak point — often left unsealed behind the register grille.
Plenum & air-handler seams
Sheet-metal plenums and the cabinet of the air handler leak at seams and access panels unless mastic-sealed.
Disconnected flex runs
Flexible ducts can pull loose at collars or get crushed above insulation, dumping conditioned air into the attic.
Panned-joist returns
Return cavities framed from floor joists or wall studs are notoriously leaky and can draw in unconditioned air.
Building-cavity returns
Using framing cavities as return ducts pulls air from attics, garages, or crawlspaces instead of living space.
Trunk-line joints
Long supply trunks flex and separate at joints over time, especially where they were only taped rather than sealed with mastic.
Why Tight Ducts Keep Heat In Your Cambridge Home
Every duct leak is a slow drain on the money you spend heating and cooling your Cambridge home. When supply air escapes into an attic or crawlspace, the rooms it was meant for never feel it.
A verified-tight duct system means a right-sized furnace or heat pump can deliver its full output where it's needed, steadying comfort and cutting waste.
What Your Cambridge Duct Test Report Includes
You get a document your building department and HERS software will accept the first time — not just a number.
- ✓Measured total duct leakage in CFM at 25 Pascals (CFM25)
- ✓Leakage normalized per 100 sq ft of conditioned floor area
- ✓Clear pass/fail against the 4.0 CFM25 limit that applies in Cambridge
- ✓The test method used (rough-in or post-construction) per ANSI/RESNET/ICC 380
- ✓Documentation formatted for your HERS rating and building-permit file
- ✓A punch list of leak locations if a re-seal and retest is needed
Best Fit for Projects Like
- Additions in Cambridge where new HVAC ducts must comply with Section R403
- Multi-unit conversions where each system needs documented duct leakage results
- Whole-home renovations pursuing energy-code sign-off in Middlesex County
- Retest visits after sealing failing seams and boots to confirm compliance
- Cambridge new-construction homes needing a duct test to complete the HERS rating
Duct Leakage Testing Cambridge MA Facts
- Studies show a 30% reduction in duct leakage can lower a home's annual energy use by as much as 16%.
- Ducts that leak about 20 percent of their conditioned air can force an HVAC system to work roughly 50 percent harder.
- Tighter ducts mean shorter run times, quieter operation, and less strain on compressors and blower motors over the system's life.
- Test results are reported as CFM25 and normalized per 100 square feet so any home can be compared to the code limit.
Trusted for Duct Leakage Testing Cambridge MA
Our Massachusetts Service Locations
Serving clients from our Massachusetts locations in Everett, Somerville, and Framingham.
Everett Location
371 Main St
Everett, MA 02149
Somerville Location
519 Broadway
Somerville, MA 02145
Framingham Location
68 South St
Framingham, MA 01702
Duct Leakage Testing for Cambridge Homes
Cambridge was one of the first cities on the Specialized (Opt-In) Code, effective July 1, 2023. New Cambridge homes need a total duct leakage test on every ducted system, the same test Stretch Code towns require.
| Situation | Total leakage limit |
|---|---|
| Any duct or the air handler outside conditioned space | 4.0 CFM25 per 100 sq ft |
| All ducts and the air handler inside conditioned space | 8.0 CFM25 per 100 sq ft (test still required) |
| When we test | Rough-in, final, or both |
Most Cambridge residential properties are small buildings. The city's statistical profile counts 33.5 percent of residential properties as single-family, 32.0 percent as two-family and 18.8 percent as three-family. In these narrow, multi-story houses, each unit's ducted heat pump usually tucks its air handler into an attic, closet or basement, with short runs through framing bays. Leaks show up at boots where the drywall was cut oversized, at air handler access panels, and where flex duct meets a metal collar.
We push for a rough-in test in Cambridge because finished ceilings in attached two- and three-family homes make later repairs messy. On a heat pump, leaky ducts mean weaker airflow to upper rooms, longer run times and a worse HERS score.
The Inspectional Services Department at 831 Massachusetts Ave (617-349-6100) handles permits through its OpenGov-based Online Permitting System, and our signed report goes into that permit record. Our Somerville office at 519 Broadway is a short drive away. Cambridge homes get electricity and gas from Eversource, a Mass Save sponsor.

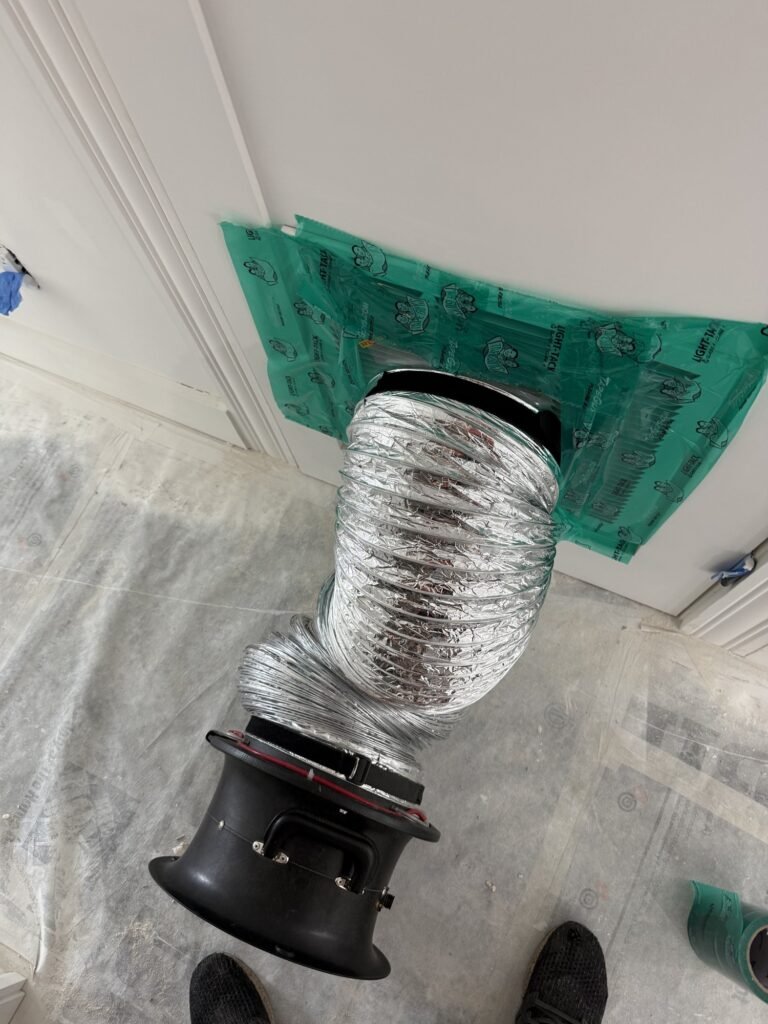

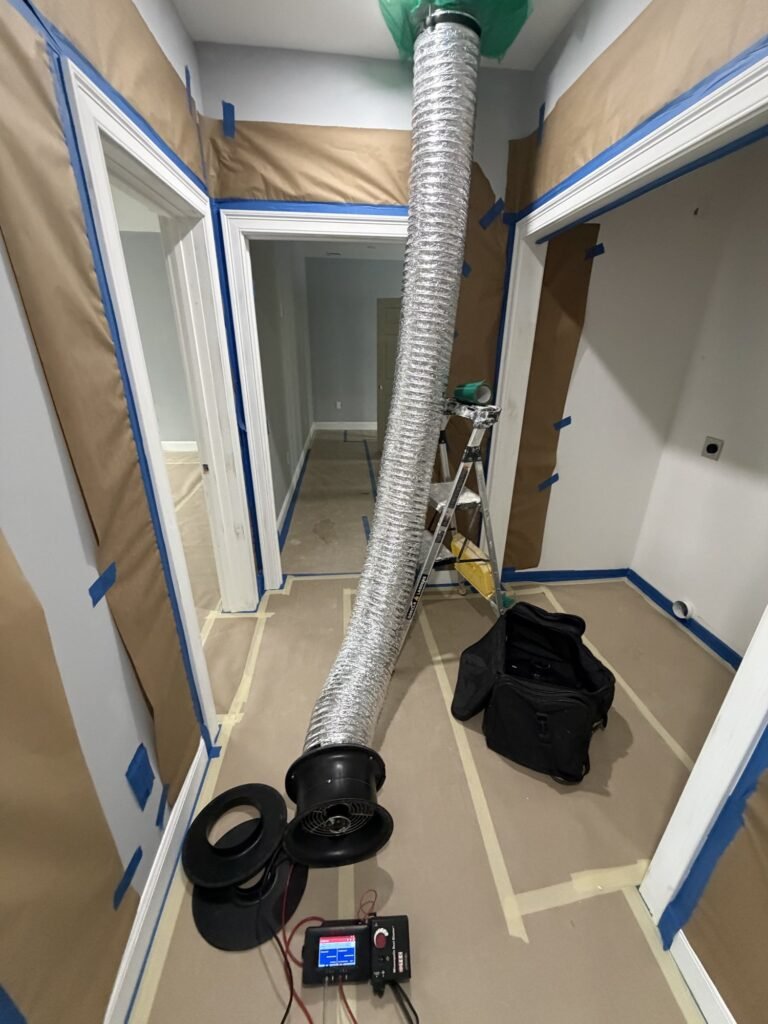

Real duct leakage tests by HEEC for Cambridge projects
These are photos from Home Energy Efficiency Consultants duct leakage testing jobs in Massachusetts — the same equipment and setup our certified raters bring to Cambridge homes.
Duct Leakage Testing Cambridge MA FAQ
Duct Leakage Test Requirements for Cambridge Projects
Cambridge is one of the 60 Massachusetts communities on the Specialized (Opt-In) Code. New homes there are built on the same 225 CMR 22.00 testing requirements below, plus net-zero-ready provisions.
| Test | Limit (CFM25 per 100 sq ft of conditioned floor area) | Notes |
|---|---|---|
| Rough-in, air handler installed | 4.0 total leakage | ANSI/RESNET/ICC 380 or ASTM E1554 |
| Rough-in, air handler not installed | 3.0 total leakage | Air handler added later |
| Post-construction | 4.0 total leakage | Final test with the system complete |
| Ducts and air handler entirely inside the thermal envelope | 8.0 total leakage | Test is still required |
| Ventilation-only ducts | Exempt | Only if not tied into heating or cooling ducts |
Massachusetts measures total duct leakage; "leakage to outside" is not a code option. Under the Massachusetts amendment to R403.3.5, the test must be done by a HERS Rater, HERS Rating Field Inspector or BPI Certified Professional, with a signed report to the Cambridge building department. Mechanical ventilation airflow must also be tested and verified by a HERS Rater under R403.6.3.
Sources: 225 CMR 22.00 (2025 edition) and the 2021 IECC sections listed. Cambridge is in Middlesex County, served from our Somerville (519 Broadway) office.
Duct Leakage Questions from Cambridge Builders
What is the duct leakage limit for a new home in Cambridge?
4.0 CFM25 of total leakage per 100 square feet of conditioned floor area, at rough-in or after construction. If the air handler is not installed at rough-in the limit is 3.0, and if every duct and the air handler are inside the thermal envelope the limit is 8.0.
Can leakage to outside be used instead of total leakage?
No. The Massachusetts code (225 CMR 22.00 R403.3.5) measures total duct leakage. Leakage-to-outside tests are used by some programs, but not for code compliance here.
Who can perform the duct test in Massachusetts?
A HERS Rater, a HERS Rating Field Inspector or a BPI Certified Professional, under the Massachusetts amendment to R403.3.5. The tester signs a written report for the code official.
Is a duct test required if all ducts are inside conditioned space?
Yes. Massachusetts follows the 2021 IECC, which still requires the test but allows up to 8.0 CFM25 per 100 square feet when the ducts and air handler are entirely inside the thermal envelope.
Rough-in or final: which test is better?
A rough-in test catches leaks while every joint is still reachable, so fixes are cheap. A post-construction test confirms the finished system. Many builders do both to avoid surprises at final.
How much does duct leakage testing cost in Cambridge?
Our duct testing is $350 for the first ducted system and $250 for each additional system at the same address. It can be done in the same visit as the blower door test and HERS inspection.
