Blower Door Testing Ashfield MA - Quick Facts
Local energy code in Ashfield
- Ashfield adopted the Massachusetts Specialized (Opt-In) Energy Code effective January 1, 2025; the Stretch Code applies as the baseline. IECC Climate Zone 6A.
- Beyond the Stretch baseline, new mixed-fuel homes must be pre-wired for future electrification and add on-site solar where there is significant unshaded roof space.
- All-electric new homes must use heat pumps for space heating and hot water; fossil-fuel homes over 4,000 sq ft must reach net-zero (HERS 0), and new multifamily over 12,000 sq ft must meet Passive House.
Blower door requirement in Ashfield
- New homes in Ashfield must test at 3.0 ACH50 or tighter under the Massachusetts Stretch Code (Specialized Code town).
- Air-leakage testing is mandatory, measured with a calibrated blower-door fan to the RESNET / ASTM protocol - there is no inspection-only substitute for the result.
- Companion duct leakage limit: 4.0 CFM25 per 100 sq ft of conditioned floor area total leakage (8.0 when all ducts are inside conditioned space - the test is still required).
- Same-day preliminary results; final report in 24-48 hours, filed with the Ashfield building department.
2026 Mass Save incentives in Ashfield
- A tight result unlocks Mass Save all-electric incentives ($7,500 to $25,000 per new single-family home); an all-electric renovation testing at 3.0 ACH50 or better reaches the Level 2 tier, up to $30,000.
- Incentives require a Mass Save-approved, RESNET-certified HERS rater.
RESNET-certified · 15,000+ ratings completed · 5.0 stars across 136 Google reviews · (617) 501-6788
Blower Door Testing Ashfield MA
Certified blower door testing in Ashfield - we measure your home's air-tightness in ACH50, pinpoint leaks, and document a passing result for your building permit.
Air-tightness at a glance
Blower Door Testing Ashfield MA
A blower door test is the code-required way to prove how airtight a home in Ashfield really is. A calibrated fan depressurizes the house to 50 Pascals so we can measure exactly how much air leaks through the envelope, reported as air changes per hour (ACH50). New construction must reach 3.0 ACH50 or lower, and no home on any compliance path may exceed 5.0 ACH50 (IECC 2021 R402.4.1.2).
| Project type | Max ACH50 | Notes |
|---|---|---|
| New construction | 3.0 or lower | Mandatory blower-door test under R402.4.1.2 |
| Maximum on any compliance path | 5.0 | Code cap under IECC 2021 R402.4.1.2 |
| Addition < 1,000 sq ft | Exempt* | May be exempt from testing (R502.3.1) |
| Passive House (PHI; Phius uses 0.06 CFM50/sq ft) | 0.6 | Whole-building test, Phius/PHI protocol |
*Confirm with your local building department. Requirements per the 2025 MA Stretch Energy Code Technical Guidance.
How Blower Door Testing Works in Ashfield
The fan mounts in an exterior doorway and holds the home at a fixed 50-Pascal pressure difference - about what a 20 mph wind would exert. The airflow required to maintain that pressure, in CFM, converts to ACH50 using the home's conditioned volume.
The code converts the result to Q50 (CFM at 50 Pa) with Q50 = (Volume × ACH50) ÷ 60. A 2,700 sq ft home at 2 ACH50 works out to roughly 810 CFM50.
Keeping Heat In During Ashfield Cold Spells
In winter the biggest enemy of a warm home is often invisible air movement. The stack effect drives heated air out through the top of the envelope and draws frigid air in near the floor, robbing heat all season - Cornell extension research describes it plainly as the effect that steals warmth from your home every winter.
Sealing and verifying the envelope with a blower door test blunts that stack effect. You keep more of the heat you have already produced, cold-floor drafts fade, and the furnace or heat pump can actually hold temperature through the coldest stretches instead of running flat out and falling behind.
Lower heating load
Less infiltration means a smaller winter heat-loss load and equipment that can keep up.
Retain paid-for heat
Warm air stays in the living space instead of escaping out the top of the house.
Steadier comfort
Fewer cold-floor drafts and a temperature that holds between heating cycles.
Where Ashfield Homes Leak Air
During depressurization the leaks are exaggerated, making them easy to find. In Franklin County's older housing stock the usual suspects are rim joists, top plates, attic hatches, recessed lights, and penetrations for plumbing and wiring. Coastal and exposed sites feel wind-driven infiltration most, so a tight, verified envelope pays back quickly here.
Best Fit for Projects Like
- Homes chasing Passive House or net-zero targets
- Custom and high-performance builds
- Certificate-of-occupancy sign-off
- Drafty existing homes seeking targeted air sealing
- Mass Save incentive and rebate projects
Blower Door Testing Ashfield MA Facts
The Q50 conversion
The code converts the ACH50 result to Q50 (CFM at 50 Pa) using Q50 = (Volume x ACH50) / 60. A 2,700 sq ft home at 2 ACH50 works out to about 810 CFM50.
Steadier indoor temperature
A tight home holds its heat longer between heating cycles, so rooms stay at a steadier temperature and recover faster after a cold, windy night.
Warmer floors, fewer drafts
Cutting the cold air drawn in low means warmer floors and fewer cold-corner drafts, which is often the comfort difference people notice first after air sealing.
Older housing stock
Much of New England's housing predates modern air-sealing, so existing homes here often start well above 10 ACH50 - leaving large, cost-effective savings on the table.
Trusted for Blower Door Testing Ashfield MA
I had an excellent experience. Friendly, knowledgeable, and very responsive. I will definitely be coming back.
When I was going to pull my building permit I was confused about documentation to meet the Massachusetts stretch energy code, but Home Energy was extremely helpful in explaining the HERS rating process and helping me apply for Mass Save rebates.
Five stars isn't enough. The team at Home Energy Efficiency Consultants LLC goes above and beyond every time. They're the gold standard for HERS ratings in Massachusetts.
Our Massachusetts Service Locations
Serving clients from our Massachusetts locations in Everett, Somerville, and Framingham.
Everett Location
371 Main St
Everett, MA 02149
Somerville Location
519 Broadway
Somerville, MA 02145
Framingham Location
68 South St
Framingham, MA 01702
Blower Door Testing in Ashfield: What to Expect
Ashfield moved to the Specialized (Opt-In) Code on January 1, 2025, after using the Stretch Code since July 2012. The air-tightness rule for a new house is the same either way: the Massachusetts code requires a blower door test, and the result must be 3.0 ACH50 or lower. Passive House and Phius projects are held to much tighter limits. The test is done at final, before the certificate of occupancy is issued.
Who signs off in Ashfield
Ashfield is a member of the Franklin County Cooperative Inspection Program (FCCIP), run by the Franklin Regional Council of Governments (FRCOG). Permits are filed online through PermitEyes, and building inspections are requested by phone at 413-774-3167 (ext. 109 or 114). FCCIP also publishes its requirements for a certificate of occupancy, so check that list and have the passing blower door report in hand before you call for the final.
Hill-town houses
The town describes Ashfield as sitting in the eastern foothills of the Berkshires, with several high hills including Ridge Hill. Census estimates (ACS 2020-2024) show about 81% of homes are detached single-family houses, about two-thirds were built before 1980, and roughly a third before 1940. On new homes and additions we look hardest at:
- Rim joists and sill plates over basements and crawlspaces.
- Attic hatches, top plates and recessed lights.
- Plumbing, wiring and flue penetrations.
- Garage-to-house walls and ceilings.
Before and after the test
Close windows and exterior doors, shut off heating, cooling and ventilation equipment, and pour water into dry drain traps. Exhaust fan openings are sealed only as the test protocol allows. If the house comes in above 3.0 ACH50, we keep the fan running to find the leaks, the crew seals them, and we retest. Ashfield projects are served from our Marlborough office at 272 Lincoln St C1.

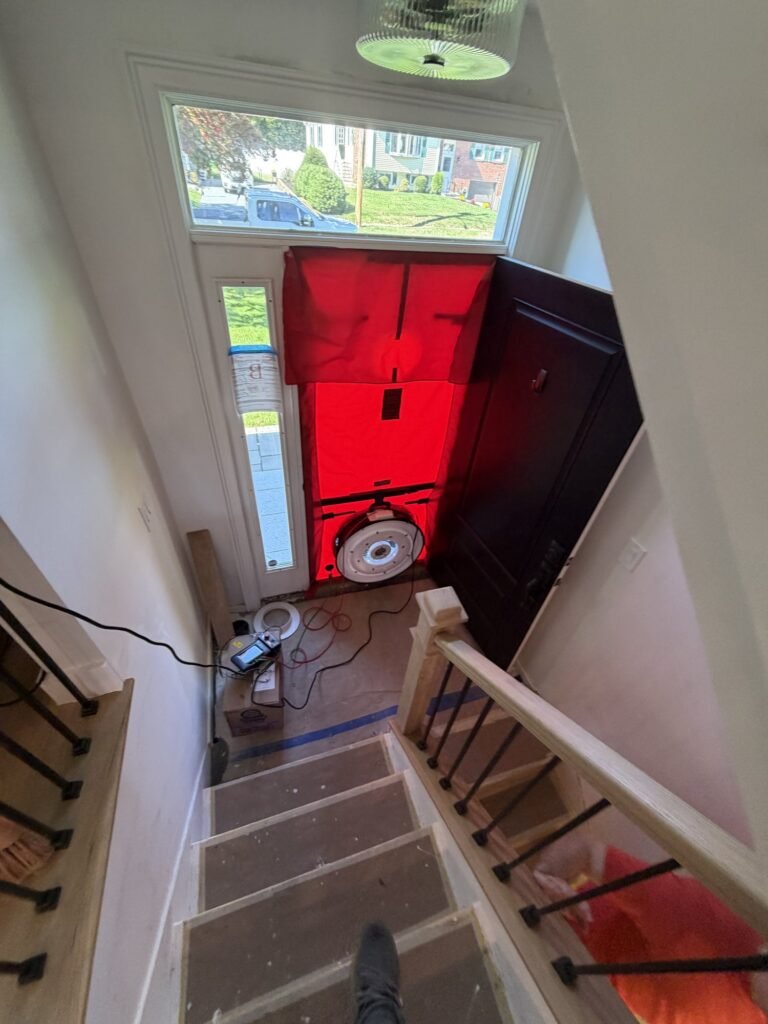

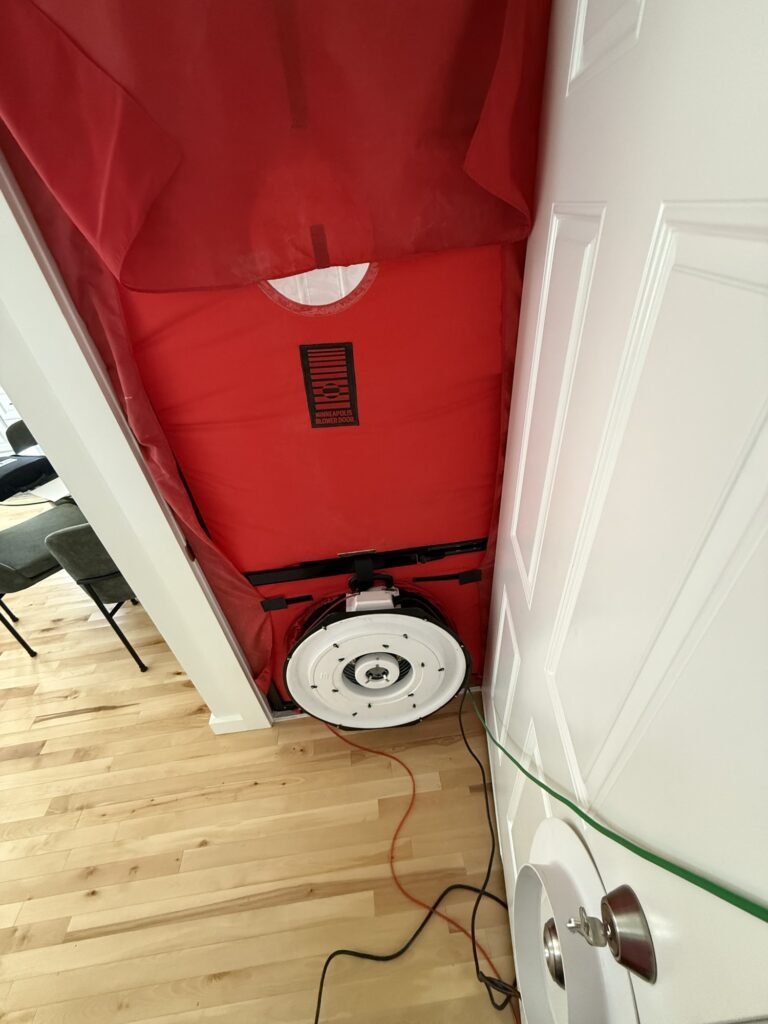

Real blower door tests by HEEC for Ashfield projects
These are photos from Home Energy Efficiency Consultants blower door testing jobs in Massachusetts — the same equipment and setup our certified raters bring to Ashfield homes.
FAQ About Blower Door Testing Ashfield MA
Why does my house feel drafty and cold in winter?
Much of that is the stack effect - warm air leaking out up high draws cold outdoor air in through gaps down low, chilling floors and lower rooms. A blower door test pinpoints exactly where that air is entering so it can be sealed.
Do additions need a blower door test?
Many do, but additions under 1,000 square feet can be exempt from air-leakage testing under R502.3.1. We can confirm what your specific project requires.
What documentation do I receive?
You receive the measured ACH50 result on a RESNET/HERS-style report suitable for the building department, plus notes on any sealing performed.
Will sealing my home cause moisture problems?
No - controlled tightness plus proper ventilation actually reduces moisture problems, because you stop humid air from moving through and condensing inside assemblies.
Where do most leaks occur?
Common culprits are rim joists, top plates, attic hatches, recessed lights, plumbing and wiring penetrations, and gaps around windows and doors.
How is ACH50 converted to CFM?
The code uses Q50 = (conditioned volume x ACH50) / 60. For example, a 2,700 sq ft home with 9 ft ceilings at 2 ACH50 equals about 810 CFM50.
Is Ashfield on the Stretch Code or the Specialized Code?
The state lists Ashfield on the Specialized (Opt-In) Code, effective January 1, 2025. Ashfield had used the Stretch Code since July 1, 2012. Either way, a new home needs a blower door result of 3.0 ACH50 or lower before the final.
Who handles building inspections in Ashfield?
Ashfield belongs to the Franklin County Cooperative Inspection Program, run by the Franklin Regional Council of Governments. Permits are filed through PermitEyes, and building inspections are requested by phone at 413-774-3167.
Blower Door Test Requirements for Ashfield Projects
Ashfield is one of the 60 Massachusetts communities on the Specialized (Opt-In) Code, effective January 1, 2025. New homes there are built on the same 225 CMR 22.00 testing requirements below, plus net-zero-ready provisions.
| Requirement | Limit | Source |
|---|---|---|
| New home, prescriptive path | 3.0 ACH50 or lower | IECC 2021 R402.4.1.3 (Climate Zone 5, all of Massachusetts) |
| Maximum on any compliance path | 5.0 ACH50 or 0.28 CFM50 per sq ft of enclosure | IECC 2021 R402.4.1.2 |
| Attached homes and apartments tested unit by unit | 0.30 CFM50 per sq ft of unit enclosure (alternative) | IECC 2021 R402.4.1.2 exception |
| Mass Save ENERGY STAR tier | 1.5 ACH50 or lower | Mass Save new construction program |
| Passive House (PHI) | 0.6 ACH50 or lower | Passive House Institute |
| Passive House (Phius) | 0.06 CFM50 per sq ft of enclosure (0.08 for non-combustible 5+ stories) | Phius 2024 Certification Guidebook |
How the house is set up for the test
- Exterior windows and doors closed, with no sealing beyond normal weatherstripping
- Dampers closed but not taped, and interior doors open
- Exterior ventilation openings sealed, heating and cooling turned off, supply and return registers open
- Tested at 50 Pascals per ANSI/RESNET/ICC 380, ASTM E779 or ASTM E1827, with a signed report for the Ashfield building department
Sources: 225 CMR 22.00 (2025 edition) and the 2021 IECC sections listed. Ashfield is in Franklin County, served from our Marlborough (272 Lincoln St) office.
Blower Door Questions from Ashfield Builders
What blower door number does a new home in Ashfield need?
On the prescriptive path the 2021 IECC requires 3.0 ACH50 or lower in Massachusetts, and no home on any path may exceed 5.0 ACH50. Homes on the HERS path are tested the same way, and the result goes into the HERS model, so a tighter house earns a lower HERS score.
What is ACH50?
Air changes per hour at 50 Pascals: how many times the home's air volume leaks out each hour while a blower door holds the house at 50 Pa. ACH50 = CFM50 × 60 ÷ conditioned volume.
How are townhouses and apartments tested?
Each dwelling unit can be tested on its own and meet 0.30 CFM50 per square foot of the unit's enclosure, which counts walls, floor and ceiling shared with neighbors. Large buildings may also get a whole-building test.
What gets taped or closed during the test?
Windows and exterior doors are closed, dampers are closed but not sealed, and exterior ventilation openings such as bath fan and ERV/HRV terminations are sealed. Interior doors stay open and the heating and cooling system is off.
When should the blower door test happen?
The code test happens at the end of construction. We recommend a pre-drywall test once the air barrier is complete, when leaks are cheap to find and fix, so the final test is a formality.
How much does blower door testing cost in Ashfield?
Pricing depends on the size of the building and the number of units. Send your plans or address and we will quote the test, or bundle it with your HERS rating and duct test in one visit.
Related: Duct leakage testing in Ashfield · HERS rating in Ashfield · Stretch Code help in Ashfield
Get Started With Blower Door Testing Ashfield MA
Book a certified blower door test and get a permit-ready air-tightness report. Call 617-501-6788.
Mass Save®-Listed HERS Rater
U.S. DOE Efficient New HomeTrusted Partner — Verified
ENERGY STAR®Partner
Phius CertifiedPassive House Verifier
ICCMember★★★★★136 Google
Reviews
The Phius Certified Verifier logo is used under license from Phius.
HERS Ratings Across Ashfield and Nearby Communities
Home Energy Efficiency Consultants rates new homes, additions, and major renovations throughout Ashfield — including Ashfield Center, and South Ashfield. Every Ashfield project is filed with the Town of Ashfield Building Department, and we handle the energy model, blower door and duct leakage testing, and the compliance paperwork from start to finish.
We also serve the communities right around Ashfield, including Conway, Buckland, Goshen, Plainfield, and Cummington. Our Marlborough office at 272 Lincoln St is the closest of our four Massachusetts locations — see our Marlborough office or call (617) 501-6788 to get a Ashfield rating on the schedule.
Ashfield Specialized Energy Code — HERS Index Targets
Ashfield enforces the Massachusetts Specialized (Opt-In) Energy Code. The required HERS score depends on fuel type and project scope — a lower index is stricter.
| Project type | Mixed-fuel | Mixed-fuel + solar | All-electric | All-electric + solar |
|---|---|---|---|---|
| New construction | HERS 42 | 42 | 45 | 45 |
| New construction — embodied-carbon credit | 45 | 45 | 48 | 48 |
| Accessory dwelling unit (ADU) | 52 | 55 | 55 | 58 |
| Major alteration / renovation / change of use | 65 | 70 | 70 | 75 |
A HERS rating is triggered by new construction, additions over 1,000 sq ft (or more than 100% of the existing conditioned area), and Level 3 alterations over 1,000 sq ft affecting more than 50% of the home. New homes must also pass a blower-door test at 3.0 ACH50 and include electrification-ready wiring for heat pumps, EV charging, and solar. We model your Ashfield project up front so you know the exact target and the fastest path to hit it — call (617) 501-6788.
