Blower Door Testing Wellesley MA - Quick Facts
Local energy code in Wellesley
- As of January 1, 2024, Wellesley enforces the Massachusetts Specialized (Opt-In) Energy Code on top of the Stretch Code baseline - IECC Climate Zone 5A.
- The Opt-In code goes further than the Stretch baseline: new fossil-fuel homes must be pre-wired for electrification and include on-site solar where roof space allows.
- New all-electric homes rely on heat pumps for heat and hot water; large fossil-fuel homes over 4,000 sq ft must hit net-zero (HERS 0), and multifamily over 12,000 sq ft must be Passive House.
Blower door requirement in Wellesley
- New homes in Wellesley must test at 3.0 ACH50 or tighter under the Massachusetts Stretch Code (Specialized Code town).
- Air-leakage testing is mandatory, measured with a calibrated blower-door fan to the RESNET / ASTM protocol - there is no inspection-only substitute for the result.
- Companion duct leakage limit: 4.0 CFM25 per 100 sq ft of conditioned floor area total leakage (8.0 when all ducts are inside conditioned space - the test is still required).
- Same-day preliminary results; final report in 24-48 hours, filed with the Wellesley building department.
Mass Save rebates for Wellesley (2026)
- A tight result unlocks Mass Save all-electric incentives ($7,500 to $25,000 per new single-family home); an all-electric renovation testing at 3.0 ACH50 or better reaches the Level 2 tier, up to $30,000.
- Incentives require a Mass Save-approved, RESNET-certified HERS rater.
RESNET-certified · 15,000+ ratings completed · 5.0 stars across 136 Google reviews · (617) 501-6788
Blower Door Testing Wellesley MA
Certified blower door testing in Wellesley - we measure your home's air-tightness in ACH50, pinpoint leaks, and document a passing result for your building permit.
Air-tightness at a glance
Blower Door Testing Wellesley MA
A blower door test is the code-required way to prove how airtight a home in Wellesley really is. A calibrated fan depressurizes the house to 50 Pascals so we can measure exactly how much air leaks through the envelope, reported as air changes per hour (ACH50). New construction must reach 3.0 ACH50 or lower, and no home on any compliance path may exceed 5.0 ACH50 (IECC 2021 R402.4.1.2).
| Project type | Max ACH50 | Notes |
|---|---|---|
| New construction | 3.0 or lower | Mandatory blower-door test under R402.4.1.2 |
| Maximum on any compliance path | 5.0 | Code cap under IECC 2021 R402.4.1.2 |
| Addition < 1,000 sq ft | Exempt* | May be exempt from testing (R502.3.1) |
| Passive House (PHI; Phius uses 0.06 CFM50/sq ft) | 0.6 | Whole-building test, Phius/PHI protocol |
*Confirm with your local building department. Requirements per the 2025 MA Stretch Energy Code Technical Guidance.
How Blower Door Testing Works in Wellesley
The fan mounts in an exterior doorway and holds the home at a fixed 50-Pascal pressure difference - about what a 20 mph wind would exert. The airflow required to maintain that pressure, in CFM, converts to ACH50 using the home's conditioned volume.
The code converts the result to Q50 (CFM at 50 Pa) with Q50 = (Volume × ACH50) ÷ 60. A 2,700 sq ft home at 2 ACH50 works out to roughly 810 CFM50.
Keeping Heat In During Wellesley Cold Spells
In winter the biggest enemy of a warm home is often invisible air movement. The stack effect drives heated air out through the top of the envelope and draws frigid air in near the floor, robbing heat all season - Cornell extension research describes it plainly as the effect that steals warmth from your home every winter.
Once the leaks are found and sealed, the home retains heat far longer between heating cycles. Floors stay warmer, temperatures hold steady on windy nights, and the reduced heating load shows up directly on winter utility bills.
Lower heating load
Less infiltration means a smaller winter heat-loss load and equipment that can keep up.
Retain paid-for heat
Warm air stays in the living space instead of escaping out the top of the house.
Steadier comfort
Fewer cold-floor drafts and a temperature that holds between heating cycles.
Where Wellesley Homes Leak Air
During depressurization the leaks are exaggerated, making them easy to find. In Norfolk County's older housing stock the usual suspects are rim joists, top plates, attic hatches, recessed lights, and penetrations for plumbing and wiring. Coastal and exposed sites feel wind-driven infiltration most, so a tight, verified envelope pays back quickly here.
Best Fit for Projects Like
- Custom and high-performance builds
- Multi-family and townhouse units
- Homes chasing Passive House or net-zero targets
- Additions over 1,000 sq ft that trigger testing
- Drafty existing homes seeking targeted air sealing
Blower Door Testing Wellesley MA Facts
Cold snaps magnify leakage
Infiltration heat loss scales with the indoor-outdoor temperature difference, so a leaky envelope bleeds the most heat exactly when you need it most - during a deep freeze.
Steadier indoor temperature
A tight home holds its heat longer between heating cycles, so rooms stay at a steadier temperature and recover faster after a cold, windy night.
When the test happens
The blower door test is typically run near completion, once the air barrier, windows, and penetrations are sealed but while any needed corrections are still easy to make.
The reference scale
For perspective, a very leaky older home can exceed 11 ACH50, current code sits at 3.0 for new builds, and certified Passive House projects reach 0.2 to 0.6 ACH50.
Trusted for Blower Door Testing Wellesley MA
I had an excellent experience. Friendly, knowledgeable, and very responsive. I will definitely be coming back.
Five stars isn't enough. The team at Home Energy Efficiency Consultants LLC goes above and beyond every time. They're the gold standard for HERS ratings in Massachusetts.
As a builder, I need accurate and dependable HERS ratings to keep projects on track. This company never disappoints. Always on time, always professional.
Our Massachusetts Service Locations
Serving clients from our Massachusetts locations in Everett, Somerville, and Framingham.
Everett Location
371 Main St
Everett, MA 02149
Somerville Location
519 Broadway
Somerville, MA 02145
Framingham Location
68 South St
Framingham, MA 01702
Blower Door Testing in Wellesley: What to Expect
Wellesley moved to the Specialized (Opt-In) Code on January 1, 2024, after following the Stretch Code since January 1, 2012. A new home on the HERS path still faces the standard air-tightness test: the Massachusetts code requires a blower door test, and the result must be 3.0 ACH50 or lower. Passive House and Phius projects must meet much tighter limits.
Paperwork first, then the final
Wellesley's Building Department (781-431-1019) has a specific routine. Many permits are handled in ViewPoint Cloud, but building inspection requests go by email only, to bldinspections@wellesleyma.gov. The department's inspection protocol says required documents, including HERS ratings, must be uploaded to ViewPoint before an inspection is scheduled. In practice, that means the blower door test and HERS report should be finished before you ask for the final inspection and certificate of occupancy.
Colonials, Capes and rebuilds
Wellesley's June 2025 draft Strategic Housing Plan says Colonials make up about 57% of its single-family homes, with Garrisons and Cape Cods at about 11% each, and a median year built of 1950. It also notes that more than 1,200 single-family homes were built from 2003 to 2025, for a net gain of only 95, a sign of steady demolition and rebuilding. On those new homes, and on gut renovations, we most often find leaks at rim joists, attic hatches, recessed lights, knee walls in Capes, and penetrations for pipes and wires.
Getting ready
- Close windows and exterior doors.
- Turn off heating, cooling and ventilation.
- Fill drain traps.
- Let us seal exhaust openings, only as the protocol allows.
If the result is above 3.0 ACH50, we keep the fan running while leaks are sealed, then retest. Wellesley is served from our Framingham office at 68 South St.
Real blower door tests by HEEC for Wellesley projects

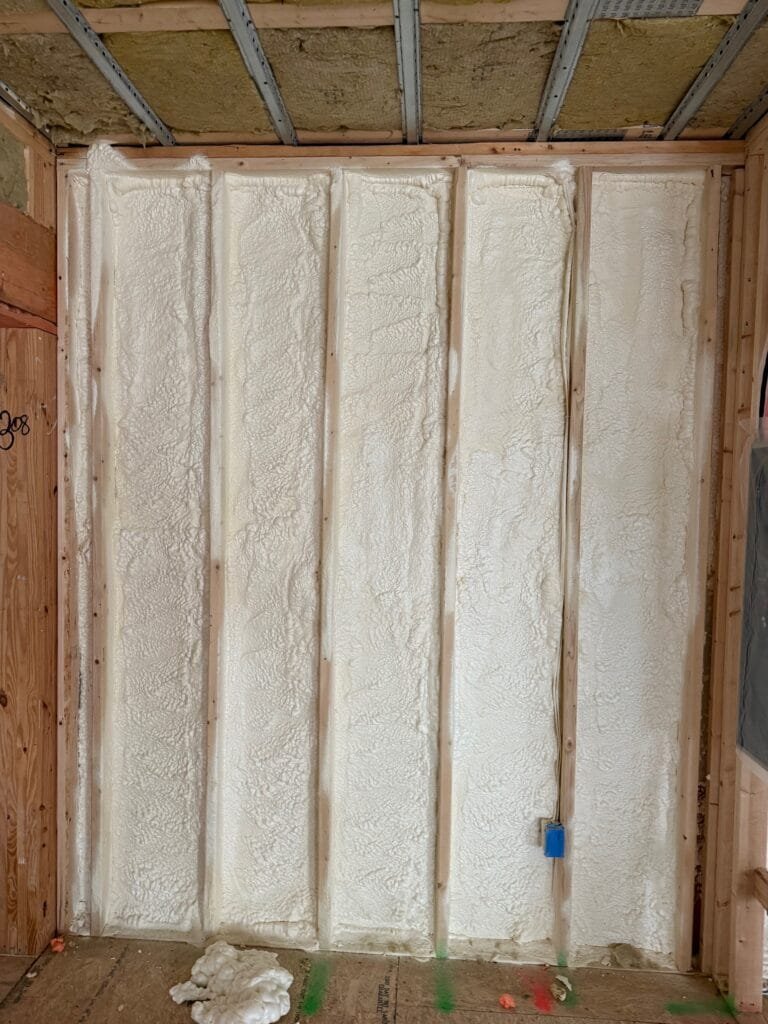

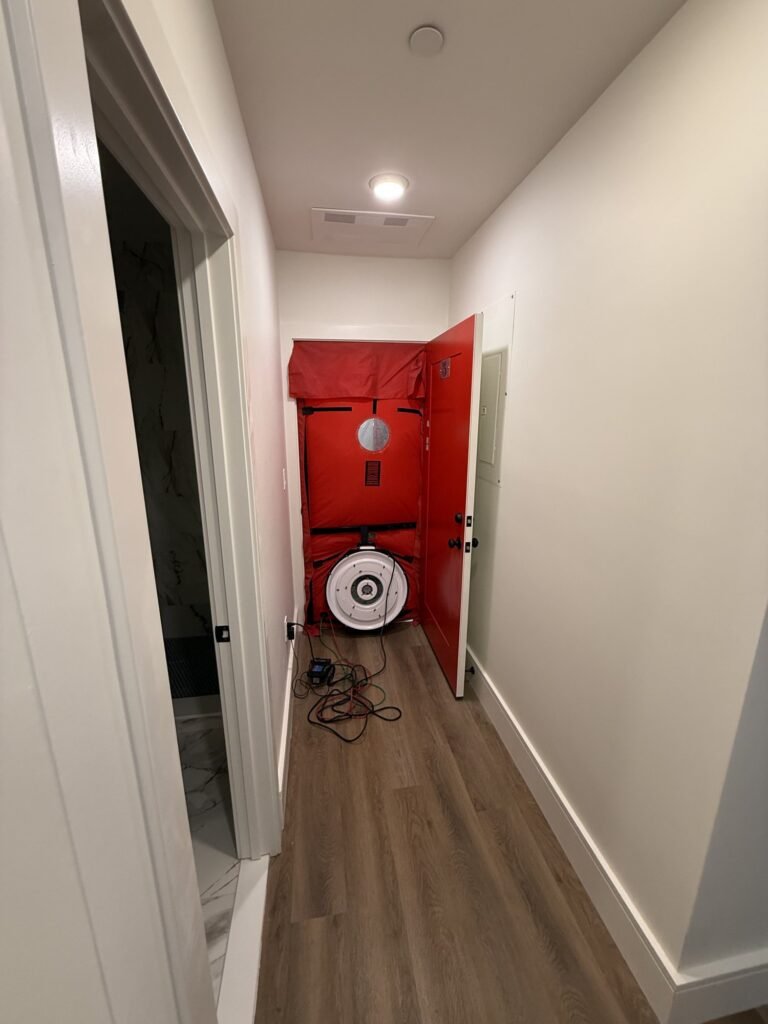

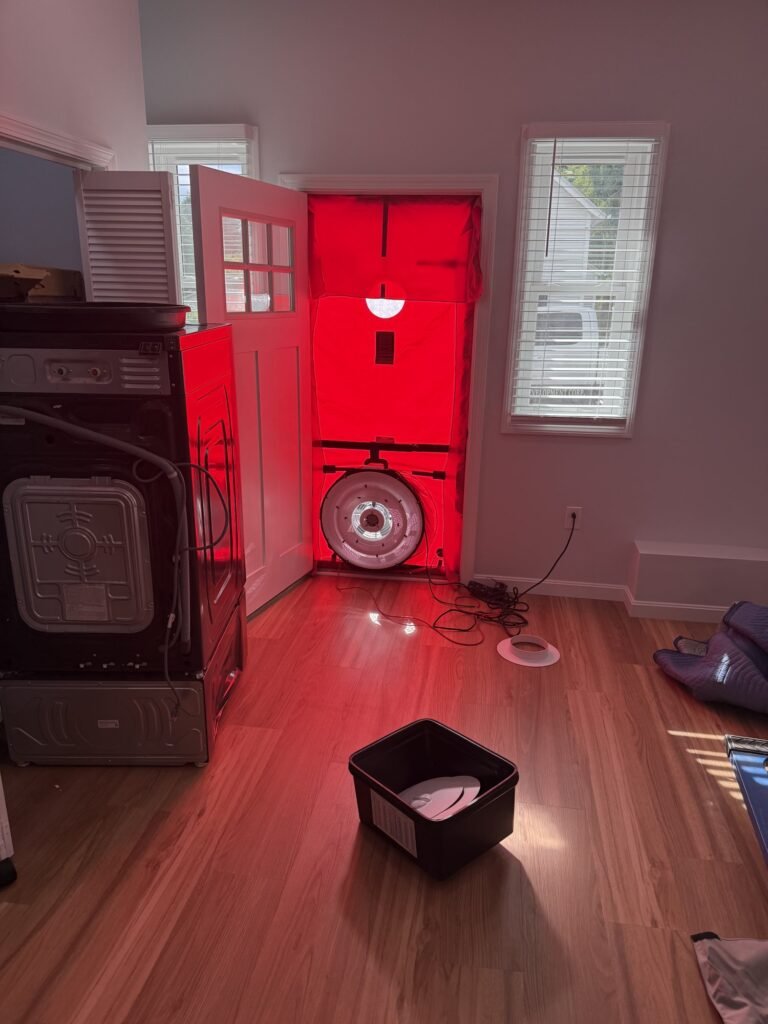

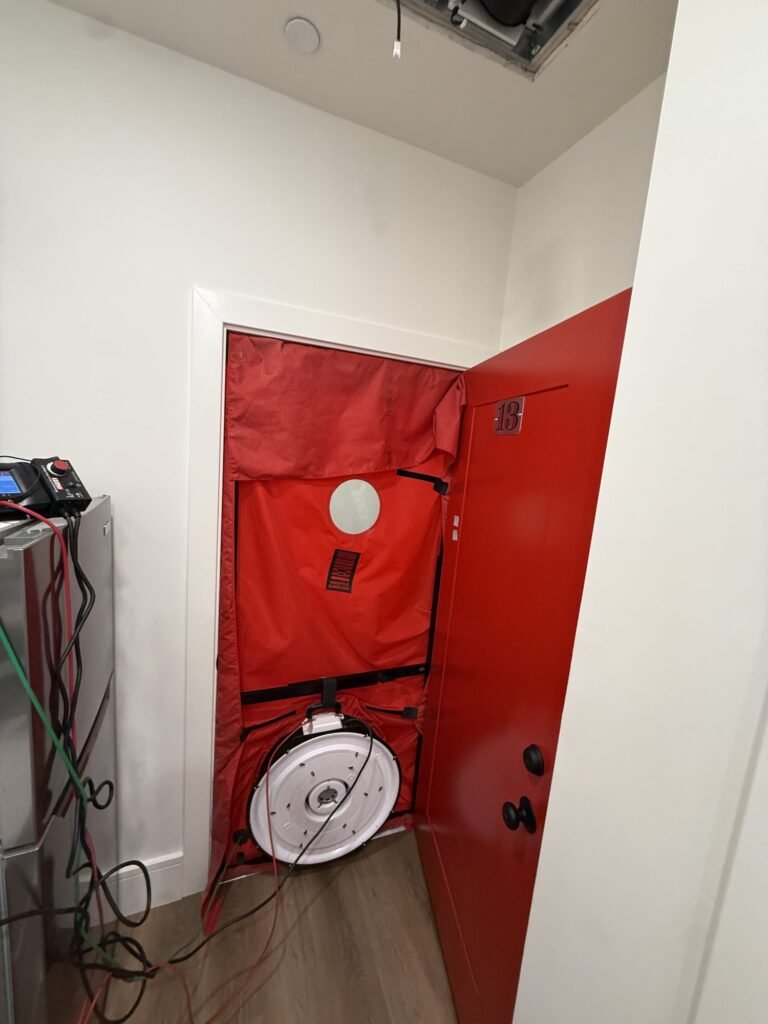

These are photos from Home Energy Efficiency Consultants blower door testing jobs in Massachusetts — the same equipment and setup our certified raters bring to Wellesley homes.
FAQ About Blower Door Testing Wellesley MA
Will sealing my home cause moisture problems?
No - controlled tightness plus proper ventilation actually reduces moisture problems, because you stop humid air from moving through and condensing inside assemblies.
Can a blower door test find where my home is drafty?
Yes. Depressurizing the home exaggerates the leaks so a rater can pinpoint exactly where outdoor air is entering, which guides targeted air sealing.
How does air sealing help during a cold spell?
In winter the stack effect drives warm air out the top of the house and pulls cold air in low down, and it gets stronger the colder it is. A tight, tested envelope blunts that effect, so you retain more of the heat you have paid for and your heating system can keep up during a deep freeze.
What does the 50 Pascal test pressure represent?
Fifty Pascals is roughly the pressure a 20 mph wind exerts on the whole building. Testing at a fixed pressure makes the result repeatable regardless of the weather that day.
Will a tighter home lower my heating load?
Yes. Infiltration is one of the largest parts of a winter heat-loss calculation. Reducing leakage directly shrinks the heating load, which can mean right-sized equipment, lower bills, and a home that holds temperature better in cold weather.
What is a blower door test?
It is a diagnostic that measures how airtight a building is. A calibrated fan mounted in a doorway pressurizes or depressurizes the home to 50 Pascals and measures the airflow needed to hold that pressure, which is reported as ACH50.
How do I request a building inspection in Wellesley?
Wellesley’s Building Department takes building inspection requests by email only, at bldinspections@wellesleyma.gov. Phone requests and requests through ViewPoint are not accepted for building inspections.
When does my HERS and blower door report need to be in for a Wellesley final?
Before the inspection is scheduled. Wellesley’s inspection protocol says required documents, such as HERS ratings, must be uploaded to ViewPoint before an inspection can be booked, so finish the blower door test first.
Blower Door Test Requirements for Wellesley Projects
Wellesley is one of the 60 Massachusetts communities on the Specialized (Opt-In) Code. New homes there are built on the same 225 CMR 22.00 testing requirements below, plus net-zero-ready provisions.
| Requirement | Limit | Source |
|---|---|---|
| New home, prescriptive path | 3.0 ACH50 or lower | IECC 2021 R402.4.1.3 (Climate Zone 5, all of Massachusetts) |
| Maximum on any compliance path | 5.0 ACH50 or 0.28 CFM50 per sq ft of enclosure | IECC 2021 R402.4.1.2 |
| Attached homes and apartments tested unit by unit | 0.30 CFM50 per sq ft of unit enclosure (alternative) | IECC 2021 R402.4.1.2 exception |
| Mass Save ENERGY STAR tier | 1.5 ACH50 or lower | Mass Save new construction program |
| Passive House (PHI) | 0.6 ACH50 or lower | Passive House Institute |
| Passive House (Phius) | 0.06 CFM50 per sq ft of enclosure (0.08 for non-combustible 5+ stories) | Phius 2024 Certification Guidebook |
How the house is set up for the test
- Exterior windows and doors closed, with no sealing beyond normal weatherstripping
- Dampers closed but not taped, and interior doors open
- Exterior ventilation openings sealed, heating and cooling turned off, supply and return registers open
- Tested at 50 Pascals per ANSI/RESNET/ICC 380, ASTM E779 or ASTM E1827, with a signed report for the Wellesley building department
Sources: 225 CMR 22.00 (2025 edition) and the 2021 IECC sections listed. Wellesley is in Norfolk County, served from our Framingham (68 South St) office.
Blower Door Questions from Wellesley Builders
What blower door number does a new home in Wellesley need?
On the prescriptive path the 2021 IECC requires 3.0 ACH50 or lower in Massachusetts, and no home on any path may exceed 5.0 ACH50. Homes on the HERS path are tested the same way, and the result goes into the HERS model, so a tighter house earns a lower HERS score.
What is ACH50?
Air changes per hour at 50 Pascals: how many times the home's air volume leaks out each hour while a blower door holds the house at 50 Pa. ACH50 = CFM50 × 60 ÷ conditioned volume.
How are townhouses and apartments tested?
Each dwelling unit can be tested on its own and meet 0.30 CFM50 per square foot of the unit's enclosure, which counts walls, floor and ceiling shared with neighbors. Large buildings may also get a whole-building test.
What gets taped or closed during the test?
Windows and exterior doors are closed, dampers are closed but not sealed, and exterior ventilation openings such as bath fan and ERV/HRV terminations are sealed. Interior doors stay open and the heating and cooling system is off.
When should the blower door test happen?
The code test happens at the end of construction. We recommend a pre-drywall test once the air barrier is complete, when leaks are cheap to find and fix, so the final test is a formality.
How much does blower door testing cost in Wellesley?
Pricing depends on the size of the building and the number of units. Send your plans or address and we will quote the test, or bundle it with your HERS rating and duct test in one visit.
Related: Duct leakage testing in Wellesley · HERS rating in Wellesley · Stretch Code help in Wellesley
Get Started With Blower Door Testing Wellesley MA
Book a certified blower door test and get a permit-ready air-tightness report. Call 617-501-6788.
Mass Save®-Listed HERS Rater
U.S. DOE Efficient New HomeTrusted Partner — Verified
ENERGY STAR®Partner
Phius CertifiedPassive House Verifier
ICCMember★★★★★136 Google
Reviews
The Phius Certified Verifier logo is used under license from Phius.
HERS Ratings Across Wellesley and Nearby Communities
Home Energy Efficiency Consultants rates new homes, additions, and major renovations throughout Wellesley — including Wellesley Hills, Wellesley Square, Wellesley Farms, and Babson Park. Every Wellesley project is filed with the Town of Wellesley Building Department, and we handle the energy model, blower door and duct leakage testing, and the compliance paperwork from start to finish.
We also serve the communities right around Wellesley, including Natick, Needham, Newton, Weston, and Dover. Our Framingham office at 68 South St is the closest of our four Massachusetts locations — see our Framingham office or call (617) 501-6788 to get a Wellesley rating on the schedule.
Wellesley Specialized Energy Code — HERS Index Targets
Wellesley enforces the Massachusetts Specialized (Opt-In) Energy Code. The required HERS score depends on fuel type and project scope — a lower index is stricter.
| Project type | Mixed-fuel | Mixed-fuel + solar | All-electric | All-electric + solar |
|---|---|---|---|---|
| New construction | HERS 42 | 42 | 45 | 45 |
| New construction — embodied-carbon credit | 45 | 45 | 48 | 48 |
| Accessory dwelling unit (ADU) | 52 | 55 | 55 | 58 |
| Major alteration / renovation / change of use | 65 | 70 | 70 | 75 |
A HERS rating is triggered by new construction, additions over 1,000 sq ft (or more than 100% of the existing conditioned area), and Level 3 alterations over 1,000 sq ft affecting more than 50% of the home. New homes must also pass a blower-door test at 3.0 ACH50 and include electrification-ready wiring for heat pumps, EV charging, and solar. We model your Wellesley project up front so you know the exact target and the fastest path to hit it — call (617) 501-6788.
