Duct Leakage Testing Gardner MA
Certified duct leakage testing for Gardner, measured with a calibrated duct blaster and documented for your permit and HERS rating.
Duct Leakage Requirements in Gardner
Gardner follows the Massachusetts Stretch Code, which caps total duct leakage at 4 CFM25 per 100 square feet. Our raters measure your ductwork in CFM25 and document a clear pass against the 4 CFM25 per 100 sq ft limit.
| Project / code tier | Duct leakage limit | What is tested |
|---|---|---|
| Base energy code | 4.0 CFM25 / 100 sq ft | Ducts outside conditioned space |
| Stretch Code | 4 CFM25 / 100 sq ft (total) | Total leakage or leakage to outside |
| Specialized Stretch Code | 3.0 CFM25 / 100 sq ft | All ducts, regardless of location |
| Ducts fully inside envelope | Test generally not required | Air handler + ducts in conditioned space |
IECC Duct Leakage Thresholds Reference
Beyond the Massachusetts tier that applies in Gardner, these are the federal IECC duct-leakage limits across code editions. All values are CFM at 25 Pascals (CFM25) per 100 sq ft of conditioned floor area (CFA) unless noted.
2009 IECC
| Test stage | Measurement | Leakage limit |
|---|---|---|
| Postconstruction Leakage Test | Duct Leakage to Outdoors | ≤ 8 CFM25 / 100 sq ft CFA |
| Rough-in with AHU | Total Duct Leakage | ≤ 6 CFM25 / 100 sq ft CFA |
| Rough-in without AHU | Total Duct Leakage | ≤ 4 CFM25 / 100 sq ft CFA |
2012, 2015, 2018 & 2021 IECC — Prescriptive Paths
| Test stage | Measurement | Leakage limit |
|---|---|---|
| Postconstruction Leakage Test | Total Duct Leakage | ≤ 4 CFM25 / 100 sq ft CFA |
| Rough-in with AHU | Total Duct Leakage | ≤ 4 CFM25 / 100 sq ft CFA |
| Rough-in without AHU | Total Duct Leakage | ≤ 3 CFM25 / 100 sq ft CFA |
2015 & 2018 IECC — Performance Path (Cost Compliance)
Leakage testing is required unless all ducts and air handlers are located entirely within the thermal envelope. There is no pass/fail threshold for duct leakage on the performance path.
2024 IECC — Prescriptive Path
| Conditioned floor area | Condition at test | Total leakage limit |
|---|---|---|
| >1,000 sq ft CFA | Space-conditioning equipment not installed | < 3 return grilles: ≤ 3 CFM · 3+ return grilles: ≤ 4 CFM |
| >1,000 sq ft CFA | All components installed | < 3 return grilles: ≤ 4 CFM · 3+ return grilles: ≤ 6 CFM |
| >1,000 sq ft CFA | Equipment not installed, ducts entirely in conditioned space | < 3 return grilles: ≤ 6 CFM · 3+ return grilles: ≤ 8 CFM |
| >1,000 sq ft CFA | All components entirely in conditioned space | < 3 return grilles: ≤ 8 CFM · 3+ return grilles: ≤ 12 CFM |
| ≤1,000 sq ft CFA | Equipment not installed | ≤ 30 CFM |
| ≤1,000 sq ft CFA | All components installed | ≤ 40 CFM |
| ≤1,000 sq ft CFA | Equipment not installed, ductwork entirely in conditioned space | ≤ 60 CFM |
| ≤1,000 sq ft CFA | All components entirely in conditioned space | ≤ 80 CFM |
How Duct Leakage Testing Works in Gardner

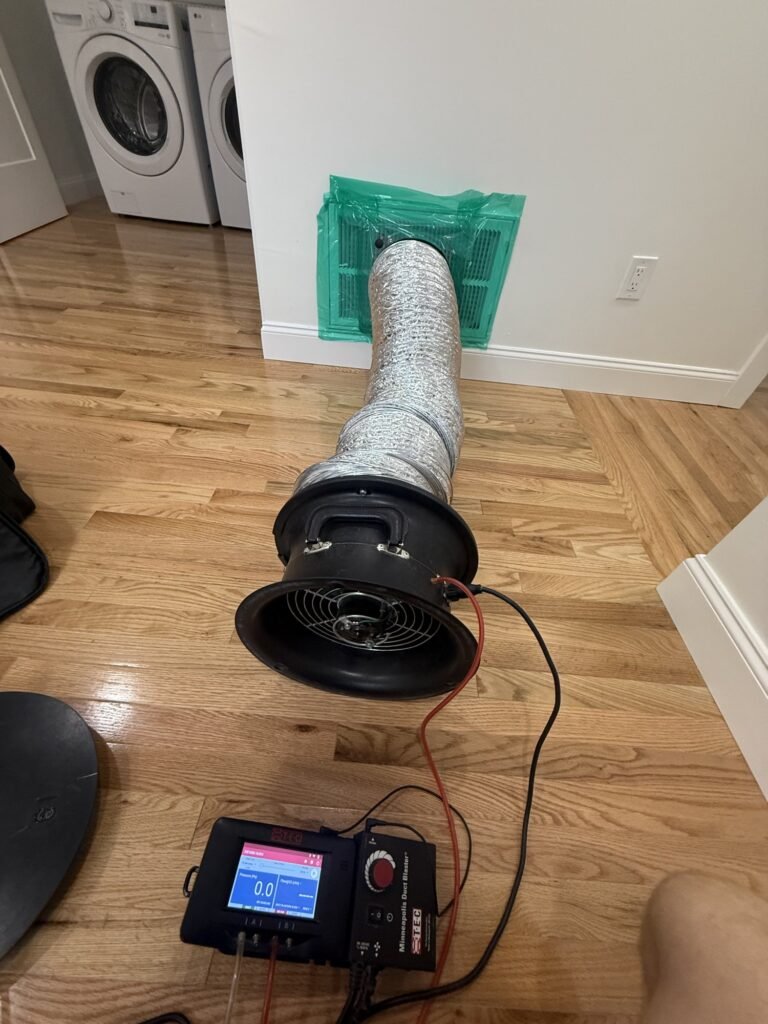

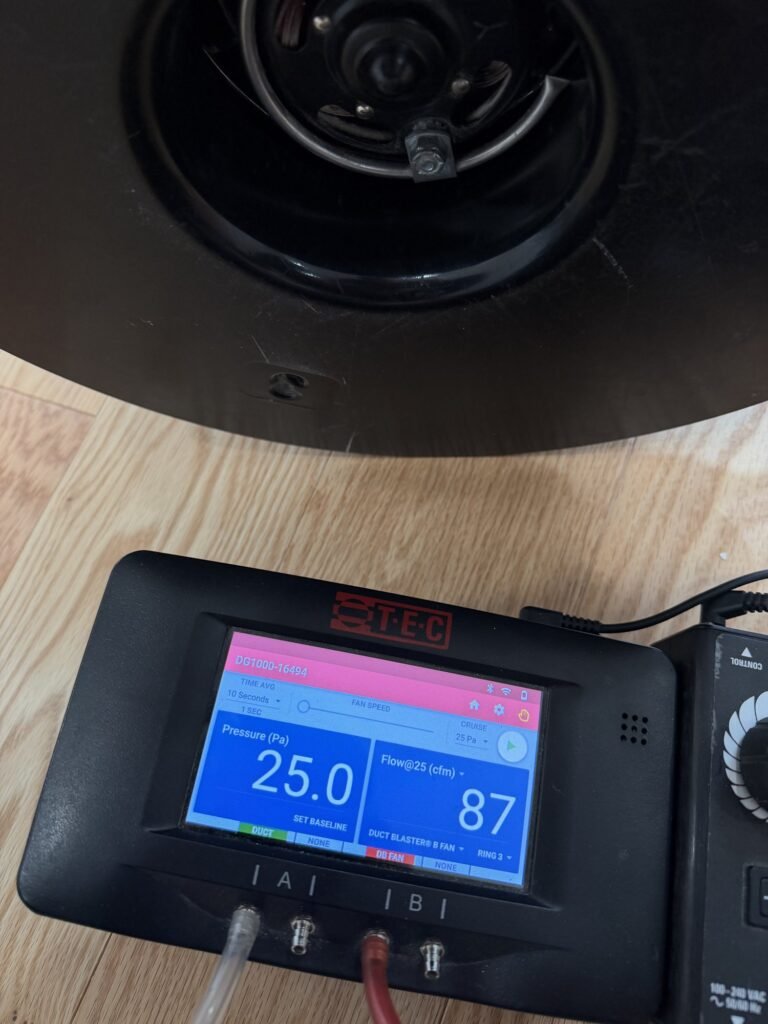

A duct blaster seals off your HVAC system and pressurizes it to 25 Pascals. The airflow needed to hold that pressure is your leakage rate in CFM25 — the lower the number, the tighter the ducts.
Common Sources of Duct Leakage We Check in Gardner
Most duct leakage comes from a short list of predictable weak points. Knowing where to look is what turns a CFM25 number into a fixable list of locations.
Boot & register connections
The joint where a duct boot meets the drywall is the single most common leak point — often left unsealed behind the register grille.
Plenum & air-handler seams
Sheet-metal plenums and the cabinet of the air handler leak at seams and access panels unless mastic-sealed.
Disconnected flex runs
Flexible ducts can pull loose at collars or get crushed above insulation, dumping conditioned air into the attic.
Panned-joist returns
Return cavities framed from floor joists or wall studs are notoriously leaky and can draw in unconditioned air.
Building-cavity returns
Using framing cavities as return ducts pulls air from attics, garages, or crawlspaces instead of living space.
Trunk-line joints
Long supply trunks flex and separate at joints over time, especially where they were only taped rather than sealed with mastic.
Why Tight Ducts Keep Heat In Your Gardner Home
Every duct leak is a slow drain on the money you spend heating and cooling your Gardner home. When supply air escapes into an attic or crawlspace, the rooms it was meant for never feel it.
A verified-tight duct system means a right-sized furnace or heat pump can deliver its full output where it's needed, steadying comfort and cutting waste.
What Your Gardner Duct Test Report Includes
You get a document your building department and HERS software will accept the first time — not just a number.
- ✓Clear pass/fail against the 4.0 CFM25 limit that applies in Gardner
- ✓The test method used (rough-in or post-construction) per ANSI/RESNET/ICC 380
- ✓Documentation formatted for your HERS rating and building-permit file
- ✓A punch list of leak locations if a re-seal and retest is needed
- ✓Measured total duct leakage in CFM at 25 Pascals (CFM25)
- ✓Leakage normalized per 100 sq ft of conditioned floor area
Best Fit for Projects Like
- Retest visits after sealing failing seams and boots to confirm compliance
- Homes switching to a heat pump where duct tightness protects the new system's output
- Custom homes with complex duct runs that need verification before final inspection
- Whole-home renovations pursuing energy-code sign-off in Worcester County
- Multi-unit conversions where each system needs documented duct leakage results
Duct Leakage Testing Gardner MA Facts
- Mastic and UL-181 rated tapes on seams and boots are the workhorse fixes that bring a failing duct system into compliance.
- Under the Specialized Stretch Code, duct leakage must not exceed 3.0 CFM25 per 100 square feet — and every duct counts, regardless of where it runs.
- Duct leakage that lets humid air into cool supply runs — or moves moist air into cold cavities — can create the conditions for mold growth.
- Because a right-sized furnace or heat pump only performs as designed when the ducts deliver its air, verified-tight ducts protect the whole HVAC investment.
