Duct Leakage Testing Worcester MA - Quick Facts
Local energy code in Worcester
- Worcester adopted the Massachusetts Specialized (Opt-In) Energy Code effective July 1, 2024; the Stretch Code applies as the baseline. IECC Climate Zone 5A.
- Beyond the Stretch baseline, new mixed-fuel homes must be pre-wired for future electrification and add on-site solar where there is significant unshaded roof space.
- All-electric new homes must use heat pumps for space heating and hot water; fossil-fuel homes over 4,000 sq ft must reach net-zero (HERS 0), and new multifamily over 12,000 sq ft must meet Passive House.
Duct leakage requirement in Worcester
- Worcester permits under the Massachusetts Stretch Code cap duct leakage at 4 CFM25 per 100 sq ft of conditioned floor area.
- Testing is required unless the entire duct system and air handler sit inside conditioned space; a rough-in test and a final test may both apply.
- Results in 24-48 hours with clear pass/fail documentation, filed with the Worcester building department.
- From $350 for the first ducted system, often bundled with blower door testing and a full HERS rating.
2026 Mass Save incentives in Worcester
- Duct and blower door results feed the HERS rating that unlocks Mass Save all-electric incentives: $7,500 to $25,000 per new single-family home and $1,000 to $3,750 per multifamily unit.
- Incentives require a Mass Save-approved, RESNET-certified HERS rater.
RESNET-certified · 15,000+ ratings completed · 5.0 stars across 136 Google reviews · (617) 501-6788
Duct Leakage Testing Worcester MA
RESNET/HERS duct leakage testing in Worcester — fast, precise CFM25 results your building department and energy-code file can rely on.
Duct Leakage Requirements in Worcester
Worcester enforces the Massachusetts Specialized (Opt-In) Code, which uses the same duct leakage limit as the Stretch Code: 4.0 CFM25 per 100 square feet of total leakage, or 3.0 at rough-in before the air handler is installed. Our raters measure your ductwork in CFM25 and document a clear pass against the 4.0 CFM25 per 100 sq ft limit.
| Project / code tier | Duct leakage limit | What is tested |
|---|---|---|
| Base energy code | 4.0 CFM25 / 100 sq ft | Total leakage (ducts outside conditioned space) |
| Stretch Code | 4 CFM25 / 100 sq ft (total) | Total leakage (leakage to outside is not a code option) |
| Rough-in test, air handler not installed | 3.0 CFM25 / 100 sq ft | Total leakage (Stretch and Specialized) |
| Ducts fully inside envelope | 8.0 CFM25 / 100 sq ft (test still required) | Air handler + ducts in conditioned space |
IECC Duct Leakage Thresholds Reference
Beyond the Massachusetts tier that applies in Worcester, these are the federal IECC duct-leakage limits across code editions. All values are CFM at 25 Pascals (CFM25) per 100 sq ft of conditioned floor area (CFA) unless noted.
2009 IECC
| Test stage | Measurement | Leakage limit |
|---|---|---|
| Postconstruction Leakage Test | Duct Leakage to Outdoors | ≤ 8 CFM25 / 100 sq ft CFA |
| Rough-in with AHU | Total Duct Leakage | ≤ 6 CFM25 / 100 sq ft CFA |
| Rough-in without AHU | Total Duct Leakage | ≤ 4 CFM25 / 100 sq ft CFA |
2012, 2015, 2018 & 2021 IECC — Prescriptive Paths
| Test stage | Measurement | Leakage limit |
|---|---|---|
| Postconstruction Leakage Test | Total Duct Leakage | ≤ 4 CFM25 / 100 sq ft CFA |
| Rough-in with AHU | Total Duct Leakage | ≤ 4 CFM25 / 100 sq ft CFA |
| Rough-in without AHU | Total Duct Leakage | ≤ 3 CFM25 / 100 sq ft CFA |
2015 & 2018 IECC — Performance Path (Cost Compliance)
Leakage testing is required unless all ducts and air handlers are located entirely within the thermal envelope. There is no pass/fail threshold for duct leakage on the performance path.
2024 IECC — Prescriptive Path
| Conditioned floor area | Condition at test | Total leakage limit |
|---|---|---|
| >1,000 sq ft CFA | Space-conditioning equipment not installed | < 3 return grilles: ≤ 3 CFM · 3+ return grilles: ≤ 4 CFM |
| >1,000 sq ft CFA | All components installed | < 3 return grilles: ≤ 4 CFM · 3+ return grilles: ≤ 6 CFM |
| >1,000 sq ft CFA | Equipment not installed, ducts entirely in conditioned space | < 3 return grilles: ≤ 6 CFM · 3+ return grilles: ≤ 8 CFM |
| >1,000 sq ft CFA | All components entirely in conditioned space | < 3 return grilles: ≤ 8 CFM · 3+ return grilles: ≤ 12 CFM |
| ≤1,000 sq ft CFA | Equipment not installed | ≤ 30 CFM |
| ≤1,000 sq ft CFA | All components installed | ≤ 40 CFM |
| ≤1,000 sq ft CFA | Equipment not installed, ductwork entirely in conditioned space | ≤ 60 CFM |
| ≤1,000 sq ft CFA | All components entirely in conditioned space | ≤ 80 CFM |
How Duct Leakage Testing Works in Worcester
A duct blaster seals off your HVAC system and pressurizes it to 25 Pascals. The airflow needed to hold that pressure is your leakage rate in CFM25 — the lower the number, the tighter the ducts.
Common Sources of Duct Leakage We Check in Worcester
Most duct leakage comes from a short list of predictable weak points. Knowing where to look is what turns a CFM25 number into a fixable list of locations.
Boot & register connections
The joint where a duct boot meets the drywall is the single most common leak point — often left unsealed behind the register grille.
Plenum & air-handler seams
Sheet-metal plenums and the cabinet of the air handler leak at seams and access panels unless mastic-sealed.
Disconnected flex runs
Flexible ducts can pull loose at collars or get crushed above insulation, dumping conditioned air into the attic.
Panned-joist returns
Return cavities framed from floor joists or wall studs are notoriously leaky and can draw in unconditioned air.
Building-cavity returns
Using framing cavities as return ducts pulls air from attics, garages, or crawlspaces instead of living space.
Trunk-line joints
Long supply trunks flex and separate at joints over time, especially where they were only taped rather than sealed with mastic.
Why Tight Ducts Keep Heat In Your Worcester Home
Every duct leak is a slow drain on the money you spend heating and cooling your Worcester home. When supply air escapes into an attic or crawlspace, the rooms it was meant for never feel it.
A verified-tight duct system means a right-sized furnace or heat pump can deliver its full output where it's needed, steadying comfort and cutting waste.
What Your Worcester Duct Test Report Includes
You get a document your building department and HERS software will accept the first time — not just a number.
- ✓Leakage normalized per 100 sq ft of conditioned floor area
- ✓Clear pass/fail against the 4.0 CFM25 limit that applies in Worcester
- ✓The test method used (rough-in or post-construction) per ANSI/RESNET/ICC 380
- ✓Documentation formatted for your HERS rating and building-permit file
- ✓A punch list of leak locations if a re-seal and retest is needed
- ✓Measured total duct leakage in CFM at 25 Pascals (CFM25)
Best Fit for Projects Like
- Worcester new-construction homes needing a duct test to complete the HERS rating
- Multi-unit conversions where each system needs documented duct leakage results
- Retest visits after sealing failing seams and boots to confirm compliance
- Homeowners chasing comfort fixes for hot-and-cold rooms caused by duct leaks
- Additions in Worcester where new HVAC ducts must comply with Section R403
Duct Leakage Testing Worcester MA Facts
- Sealing leaky ducts steadies room-to-room temperatures and cuts the energy wasted heating or cooling empty attics and crawlspaces.
- Ducts that leak about 20 percent of their conditioned air can force an HVAC system to work roughly 50 percent harder.
- Worcester’s Specialized (Opt-In) Code, like the Stretch Code, requires total duct leakage to stay at or below 4 CFM25 per 100 square feet of conditioned floor area.
- ENERGY STAR reports that roughly 20 to 30 percent of the air moving through a duct system escapes through leaks, holes, and loose connections.
Trusted for Duct Leakage Testing Worcester MA
Our Massachusetts Service Locations
Serving clients from our Massachusetts locations in Everett, Somerville, and Framingham.
Everett Location
371 Main St
Everett, MA 02149
Somerville Location
519 Broadway
Somerville, MA 02145
Framingham Location
68 South St
Framingham, MA 01702
Duct Leakage Testing for Worcester Homes
Worcester moved to the Specialized (Opt-In) Code on July 1, 2024, according to the Commonwealth's adoption table. That doesn't change the duct test itself: each ducted system in a new Worcester home has to pass a total duct leakage test before the job can close out.
Pass or fail, in one line
Total leakage at or below 4.0 CFM25 per 100 sq ft of conditioned floor area, or 8.0 CFM25 per 100 sq ft if all of the ductwork and the air handler are inside conditioned space. The higher limit does not skip the test.
Older housing, longer duct runs
The Worcester Regional Research Bureau reports that nearly 60 percent of the city's housing units were built before 1960, and the triple-decker is a core part of Worcester's traditional housing mix. When those buildings get new ducted heat pumps, each floor's system often runs through an unconditioned attic or along a basement ceiling. The failures we chase most: panned-joist returns, boots left unsealed at the plaster or drywall line, air handler access panels without a tight seal, and flex duct connections that were taped instead of mastic-sealed.
Rough-in first, then final
A rough-in test catches problems while every joint can still be reached. The final test confirms the finished system and goes into your HERS file. On a heat pump, duct leaks waste heat the equipment worked to make, which hurts both comfort and the HERS score.
Worcester's Department of Inspectional Services at 25 Meade Street (508-799-1198) takes building and mechanical permit applications through the city's online permit portal. We serve Worcester from our Marlborough office at 272 Lincoln St C1, and National Grid, the city's electric utility, is a Mass Save sponsor.
Real duct leakage tests by HEEC for Worcester projects

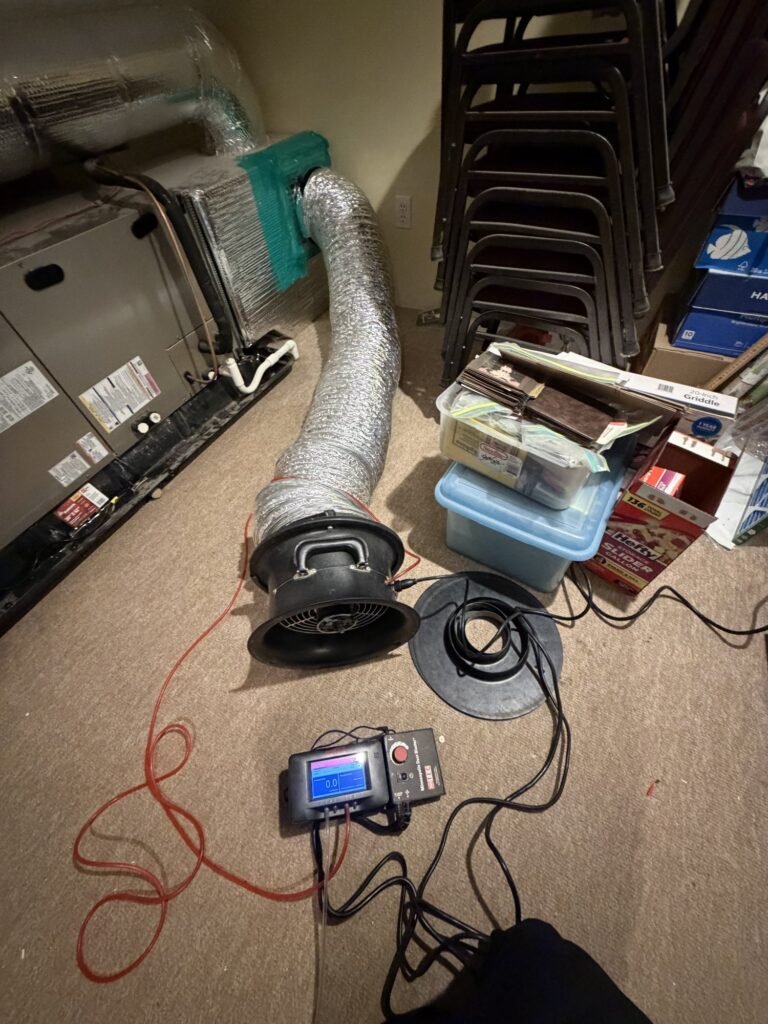

These are photos from Home Energy Efficiency Consultants duct leakage testing jobs in Massachusetts — the same equipment and setup our certified raters bring to Worcester homes.
Duct Leakage Testing Worcester MA FAQ
Duct Leakage Test Requirements for Worcester Projects
Worcester is one of the 60 Massachusetts communities on the Specialized (Opt-In) Code. New homes there are built on the same 225 CMR 22.00 testing requirements below, plus net-zero-ready provisions.
| Test | Limit (CFM25 per 100 sq ft of conditioned floor area) | Notes |
|---|---|---|
| Rough-in, air handler installed | 4.0 total leakage | ANSI/RESNET/ICC 380 or ASTM E1554 |
| Rough-in, air handler not installed | 3.0 total leakage | Air handler added later |
| Post-construction | 4.0 total leakage | Final test with the system complete |
| Ducts and air handler entirely inside the thermal envelope | 8.0 total leakage | Test is still required |
| Ventilation-only ducts | Exempt | Only if not tied into heating or cooling ducts |
Massachusetts measures total duct leakage; "leakage to outside" is not a code option. Under the Massachusetts amendment to R403.3.5, the test must be done by a HERS Rater, HERS Rating Field Inspector or BPI Certified Professional, with a signed report to the Worcester building department. Mechanical ventilation airflow must also be tested and verified by a HERS Rater under R403.6.3.
Sources: 225 CMR 22.00 (2025 edition) and the 2021 IECC sections listed. Worcester is in Worcester County, served from our Marlborough (272 Lincoln St) office.
Duct Leakage Questions from Worcester Builders
What is the duct leakage limit for a new home in Worcester?
4.0 CFM25 of total leakage per 100 square feet of conditioned floor area, at rough-in or after construction. If the air handler is not installed at rough-in the limit is 3.0, and if every duct and the air handler are inside the thermal envelope the limit is 8.0.
Can leakage to outside be used instead of total leakage?
No. The Massachusetts code (225 CMR 22.00 R403.3.5) measures total duct leakage. Leakage-to-outside tests are used by some programs, but not for code compliance here.
Who can perform the duct test in Massachusetts?
A HERS Rater, a HERS Rating Field Inspector or a BPI Certified Professional, under the Massachusetts amendment to R403.3.5. The tester signs a written report for the code official.
Is a duct test required if all ducts are inside conditioned space?
Yes. Massachusetts follows the 2021 IECC, which still requires the test but allows up to 8.0 CFM25 per 100 square feet when the ducts and air handler are entirely inside the thermal envelope.
Rough-in or final: which test is better?
A rough-in test catches leaks while every joint is still reachable, so fixes are cheap. A post-construction test confirms the finished system. Many builders do both to avoid surprises at final.
How much does duct leakage testing cost in Worcester?
Our duct testing is $350 for the first ducted system and $250 for each additional system at the same address. It can be done in the same visit as the blower door test and HERS inspection.
Related: Blower door testing in Worcester · HERS rating in Worcester · Stretch Code help in Worcester
Get Started With Duct Leakage Testing Worcester MA
Fast scheduling and permit-ready CFM25 reports for Worcester and all of Worcester County.
Call 617-501-6788
Mass Save®-Listed HERS Rater
U.S. DOE Efficient New HomeTrusted Partner — Verified
ENERGY STAR®Partner
Phius CertifiedPassive House Verifier
ICCMember★★★★★136 Google
Reviews
The Phius Certified Verifier logo is used under license from Phius.
HERS Ratings Across Worcester and Nearby Communities
Home Energy Efficiency Consultants rates new homes, additions, and major renovations throughout Worcester — from Shrewsbury Street, Main South, and Burncoat to Tatnuck and Grafton Hill. Every Worcester project is filed with the City of Worcester Department of Inspectional Services, and we handle the energy model, blower door and duct leakage testing, and the compliance paperwork from start to finish.
We also serve the communities right around Worcester, including Shrewsbury, Auburn, Holden, Millbury, and Grafton. Our Marlborough office at 272 Lincoln St is the closest of our four Massachusetts locations — see our Marlborough office or call (617) 501-6788 to get a Worcester rating on the schedule.
Worcester Specialized Energy Code — HERS Index Targets
Worcester enforces the Massachusetts Specialized (Opt-In) Energy Code. The required HERS score depends on fuel type and project scope — a lower index is stricter.
| Project type | Mixed-fuel | Mixed-fuel + solar | All-electric | All-electric + solar |
|---|---|---|---|---|
| New construction | HERS 42 | 42 | 45 | 45 |
| New construction — embodied-carbon credit | 45 | 45 | 48 | 48 |
| Accessory dwelling unit (ADU) | 52 | 55 | 55 | 58 |
| Major alteration / renovation / change of use | 65 | 70 | 70 | 75 |
A HERS rating is triggered by new construction, additions over 1,000 sq ft (or more than 100% of the existing conditioned area), and Level 3 alterations over 1,000 sq ft affecting more than 50% of the home. New homes must also pass a blower-door test at 3.0 ACH50 and include electrification-ready wiring for heat pumps, EV charging, and solar. We model your Worcester project up front so you know the exact target and the fastest path to hit it — call (617) 501-6788.
