Spray Foam Insulation Acton MA - Quick Facts
Local energy code in Acton
- Acton has been an Opt-In (Specialized Code) community since January 1, 2024, layering electrification requirements on the Stretch Code; it sits in IECC Climate Zone 5A.
- Beyond the Stretch baseline, new mixed-fuel homes must be pre-wired for future electrification and add on-site solar where there is significant unshaded roof space.
- All-electric new homes must use heat pumps for space heating and hot water; fossil-fuel homes over 4,000 sq ft must reach net-zero (HERS 0), and new multifamily over 12,000 sq ft must meet Passive House.
- Acton also participates in the Massachusetts Municipal Fossil Fuel-Free Building Demonstration Program - new construction and major renovations must be built fossil-fuel-free (all-electric), a step beyond the Specialized Code.
Insulation & air sealing in Acton
- Spray foam is one of the fastest ways to hit the 3.0 ACH50 blower door target and the HERS 42/45 scores required in Acton.
- Envelope R-values follow IECC Climate Zone 5A (roughly R-49 to R-60 attic and R-20+ walls).
- Open-cell and closed-cell assemblies are evaluated during HERS plan review; as RESNET raters, not an insulation contractor, we give unbiased guidance on where R-value and air-sealing dollars move your score most.
What you can get back: 2026 Mass Save
- Better air sealing and insulation move projects into higher Mass Save tiers - up to $25,000 for a new all-electric single-family home and up to $30,000 (Level 2) for all-electric renovations - verified by a RESNET-certified HERS rater.
RESNET-certified · 15,000+ ratings completed · 5.0 stars across 135 Google reviews · (617) 501-6788
Acton Spray Foam & Insulation
Across Acton, homes range from a mix of colonials, capes, ranches, and newer construction. Spray foam insulation seals and insulates in a single step, so your Acton project gets a tighter, more comfortable building envelope with lower energy bills.
Choosing Between Open- and Closed-Cell Foam
Spray foam comes in two families, and the right choice shapes both performance and cost on a Acton project.
Closed-Cell Spray Foam
Dense and rigid at roughly R-6 to R-7 per inch — the highest R-value of common insulation. It also acts as an air and vapor barrier and adds stiffness, making it ideal for rim joists, basements, crawlspaces, and roof decks in Acton homes.
Open-Cell Spray Foam
Lighter and vapor-permeable at about R-3.5 to R-3.8 per inch. It expands to fill irregular cavities, seals air leaks, and dampens sound — a strong choice for interior walls and attics where drying potential matters.
Comparing Insulation Materials by R-Value
R-value measures resistance to heat flow — higher is better. Here is how the insulation materials used on Acton, Acton projects compare per inch of thickness.
Fiberglass batts
The most common and economical insulation; must be cut and fitted carefully because gaps and compression sharply reduce real-world performance.
EPS rigid board
Expanded polystyrene; the most affordable rigid foam, used for continuous exterior and below-grade insulation.
Open-cell spray foam
Lighter and vapor-permeable; expands fully to fill irregular cavities, seals air leaks and dampens sound. A common choice for interior walls and vented attics.
Wood fiber
Renewable, carbon-storing batts and boards with strong sound dampening and vapor-open performance.
XPS rigid board
Extruded polystyrene; moisture-resistant rigid board common under slabs and on foundation walls.
Fiberglass blown-in
Loose-fill for open attic floors; fast to install and settles into an even blanket over large horizontal areas.
Closed-cell spray foam
The highest R-value of any common insulation; also acts as an air and vapor barrier and adds structural rigidity. Ideal for rim joists, basements, crawlspaces and unvented roof decks.
Polyiso rigid board
The highest-R rigid foam board; foil-faced and used for continuous exterior insulation to stop thermal bridging.
Mineral wool (rock wool)
Dense, naturally fire-resistant and water-repellent batts or boards with excellent sound control; keeps its R-value when wet.
Cellulose (dense-pack)
Recycled paper fiber treated for fire and pests; dense-packs into closed wall cavities, making it ideal for retrofits.
Where Spray Foam Works in Acton Homes
Exterior walls
Foam fills stud cavities completely, eliminating the gaps that reduce batt performance.
Bonus rooms & knee walls
Sealing these awkward areas fixes the hot-and-cold rooms common over garages.
Rim & band joists
A major air-leak point where the foundation meets framing; closed-cell foam seals and insulates it.
Cathedral ceilings
Foam insulates tight roof-line assemblies where batts cannot breathe or fit well.

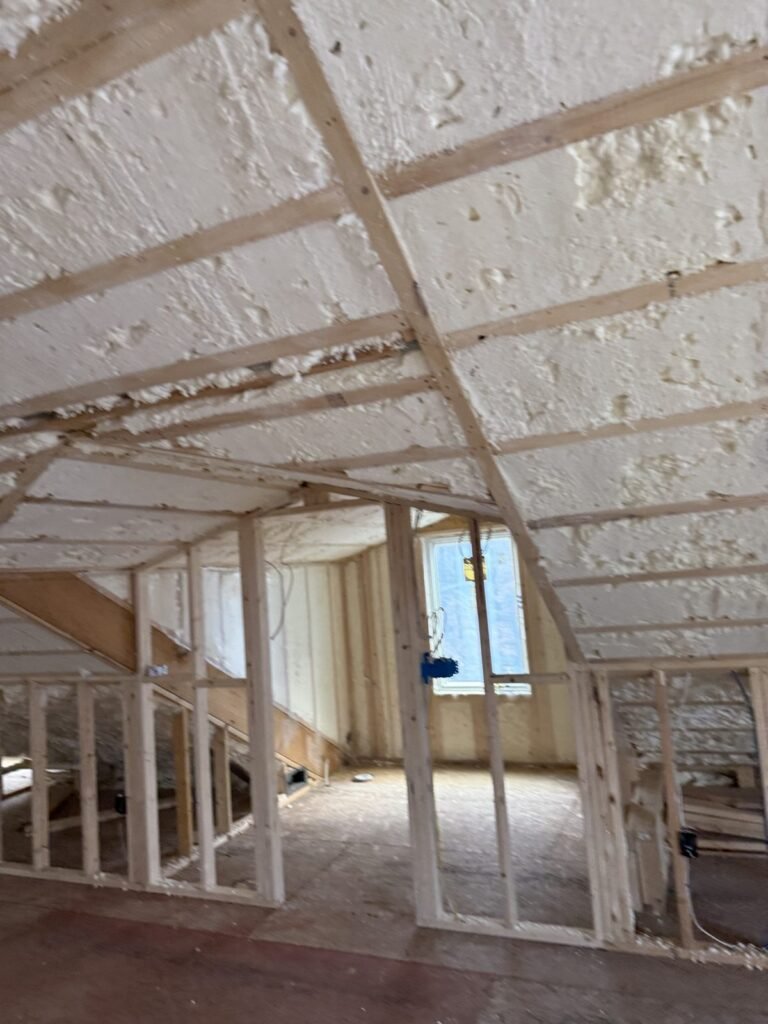

Attics & roof decks
The top source of heat loss; foam on the roof deck creates a conditioned, sealed attic.
How to Vet a Spray Foam Contractor in Acton
Spray foam involves chemical reactions and strict safety steps, so the installer matters. In Acton, look for a contractor who:
- Knows Massachusetts code, including ignition and thermal barrier requirements
- Provides a clear written scope and estimate before starting
- Documents R-values and provides what you need for code sign-off
- Holds industry credentials such as SPFA (Spray Polyurethane Foam Alliance) training
- Manufacturer-certified to install specific foam systems and keep warranties valid
- Follows OSHA safety practices with proper ventilation and respirators during spraying
- Uses the correct foam type and thickness for each assembly to avoid off-ratio foam
What the Massachusetts Code Requires
Acton falls in IECC Climate Zone 5A. New and renovated homes must meet these minimum insulation levels under the Massachusetts energy code.
| Assembly | Minimum R-value (Zone 5) |
|---|---|
| Wood-frame walls | R-20, or R-13 cavity + R-5 continuous |
| Ceilings / attics | R-49 to R-60 |
| Floors over unconditioned space | R-30 |
| Basement walls | R-15 continuous or R-19 cavity |
| Crawlspace walls | R-15 continuous or R-19 cavity |
| Slab edge (heated) | R-10, 2 ft deep |
Serving Acton and the Surrounding Area
Serving Acton and the rest of Acton, we tailor every insulation plan to the local building stock — a mix of colonials, capes, ranches, and newer construction — and to the demands of IECC Climate Zone 5A.
Reaching Stretch-Code R-Values with a Hybrid System
Filling an entire framing bay with closed-cell foam is effective but expensive. A smarter build layers a modest amount of closed-cell against the outer sheathing for the air seal and vapor control, then tops up the cavity with a lower-cost material to finish the R-value.
The Flash — Closed-Cell
Sprayed on the cold, outer side of the cavity, the closed-cell "flash" seals air leaks and controls vapor while the sheathing stays warm. Around two inches delivers close to R-13 by itself.
The Fill
The remaining cavity is filled with a budget-friendly material such as open-cell foam or dense-pack cellulose to complete the R-value.
Worked Example — R-30 Wall
For an R-30 target in a standard 5.5-inch bay: pair a 2-inch closed-cell flash (≈ R-13) with about 4.5 inches of open-cell or cellulose (≈ R-17), landing right around R-30.
Keeping the impermeable closed-cell on the cold, outer face keeps the sheathing above the dew point, so moisture can't condense inside the wall — the key rule is making that foam layer thick enough for our Zone 5 climate.
Frequently Asked Questions
How do you reach R-30 in a wall with spray foam?
The most cost-effective route is a hybrid, or flash-and-fill, assembly: about 2 inches of closed-cell foam (≈ R-13) against the sheathing for the air seal and vapor control, then the rest of the cavity filled with open-cell foam, dense-pack cellulose, or batt (≈ R-16 to R-18). In a standard Acton 2x6 wall that combination lands right around R-30.
What is the difference between open-cell and closed-cell foam?
Closed-cell foam is denser, delivers about R-6 to R-7 per inch, and acts as an air and vapor barrier — good for rim joists, basements, and roof decks. Open-cell is lighter, about R-3.5 to R-3.8 per inch, vapor-permeable, and often used in walls and attics.
Do I need to insulate to meet the Massachusetts energy code?
Yes. Massachusetts follows the IECC (Climate Zone 5) with the state Stretch Code, which sets minimum R-values for walls, ceilings, floors, and foundations. We make sure your Acton project documents and meets those levels.
Is spray foam insulation worth it for a Acton home?
For most Acton homes it is. Spray foam insulates and air-seals at once, which usually cuts heating and cooling costs more than batts alone and helps older homes feel far more comfortable.
Can insulation be added to an existing Acton home?
Yes. Dense-pack cellulose, injection foam, and spray foam can all be added to existing homes — often without major demolition — to improve comfort and efficiency.
What R-value is required for spray foam in Massachusetts?
Massachusetts follows Climate Zone 5 requirements. Above-grade walls generally need about R-20 (or R-13 cavity plus R-5 continuous), attics and ceilings call for roughly R-49 to R-60, floors over unconditioned space about R-30, and basement or crawlspace walls around R-15 continuous. We size the foam on every Acton project to hit the value your assembly needs to pass code.
What R-value do you get from 2 inches of closed-cell spray foam?
At about R-6.5 to R-7 per inch, two inches of closed-cell foam gives roughly R-13, and that layer also air-seals the cavity and controls vapor. On many Acton walls we pair a 2-inch closed-cell flash with a lower-cost fill to reach the full target economically.
Does Mass Save cover spray foam insulation?
Mass Save is a real Massachusetts efficiency program that Acton homeowners can explore. It typically funds a no-cost home energy assessment and offers incentives toward weatherization and air sealing; coverage for spray foam specifically can vary and often depends on the assessment, so we help you understand what your project may qualify for.
HERS Ratings Across Acton and Nearby Communities
Home Energy Efficiency Consultants rates new homes, additions, and major renovations throughout Acton — including West Acton, South Acton, Acton Center, and East Acton. Every Acton project is filed with the Town of Acton Building Department, and we handle the energy model, blower door and duct leakage testing, and the compliance paperwork from start to finish.
We also serve the communities right around Acton, including Concord, Maynard, Boxborough, Littleton, and Stow. Our Marlborough office at 272 Lincoln St is the closest of our four Massachusetts locations — see our Marlborough office or call (617) 501-6788 to get a Acton rating on the schedule.
Acton Specialized Energy Code — HERS Index Targets
Acton enforces the Massachusetts Specialized (Opt-In) Energy Code. The required HERS score depends on fuel type and project scope — a lower index is stricter. As a fossil-fuel-free community, new construction in Acton must be built all-electric, so the all-electric columns apply.
| Project type | Mixed-fuel | Mixed-fuel + solar | All-electric | All-electric + solar |
|---|---|---|---|---|
| New construction | HERS 42 | 42 | 45 | 45 |
| New construction — embodied-carbon credit | 45 | 45 | 48 | 48 |
| Accessory dwelling unit (ADU) | 52 | 55 | 55 | 58 |
| Major alteration / renovation / change of use | 65 | 70 | 70 | 75 |
A HERS rating is triggered by new construction, additions over 1,000 sq ft (or more than 100% of the existing conditioned area), and Level 3 alterations over 1,000 sq ft affecting more than 50% of the home. New homes must also pass a blower-door test at 3.0 ACH50 and include electrification-ready wiring for heat pumps, EV charging, and solar. We model your Acton project up front so you know the exact target and the fastest path to hit it — call (617) 501-6788.
