Duct Leakage Testing Boston MA - Quick Facts
Local energy code in Boston
- Boston has been an Opt-In (Specialized Code) community since January 1, 2024, layering electrification requirements on the Stretch Code; it sits in IECC Climate Zone 5A.
- Beyond the Stretch baseline, new mixed-fuel homes must be pre-wired for future electrification and add on-site solar where there is significant unshaded roof space.
- All-electric new homes must use heat pumps for space heating and hot water; fossil-fuel homes over 4,000 sq ft must reach net-zero (HERS 0), and new multifamily over 12,000 sq ft must meet Passive House.
Duct leakage requirement in Boston
- Boston permits under the Massachusetts Stretch Code cap duct leakage at 4 CFM25 per 100 sq ft of conditioned floor area.
- Testing is required unless the entire duct system and air handler sit inside conditioned space; a rough-in test and a final test may both apply.
- Results in 24-48 hours with clear pass/fail documentation, filed with the Boston building department.
- From $350 for the first ducted system, often bundled with blower door testing and a full HERS rating.
What you can get back: 2026 Mass Save
- Duct and blower door results feed the HERS rating that unlocks Mass Save all-electric incentives: $7,500 to $25,000 per new single-family home and $1,000 to $3,750 per multifamily unit.
- Incentives require a Mass Save-approved, RESNET-certified HERS rater.
RESNET-certified · 15,000+ ratings completed · 5.0 stars across 136 Google reviews · (617) 501-6788
Duct Leakage Testing Boston MA
RESNET/HERS duct leakage testing in Boston — fast, precise CFM25 results your building department and energy-code file can rely on.
Duct Leakage Requirements in Boston
Boston enforces the Massachusetts Specialized (Opt-In) Code, which uses the same duct leakage limit as the Stretch Code: 4.0 CFM25 per 100 square feet of total leakage, or 3.0 at rough-in before the air handler is installed. Our raters measure your ductwork in CFM25 and document a clear pass against the 4.0 CFM25 per 100 sq ft limit.
| Project / code tier | Duct leakage limit | What is tested |
|---|---|---|
| Base energy code | 4.0 CFM25 / 100 sq ft | Total leakage (ducts outside conditioned space) |
| Stretch Code | 4 CFM25 / 100 sq ft (total) | Total leakage (leakage to outside is not a code option) |
| Rough-in test, air handler not installed | 3.0 CFM25 / 100 sq ft | Total leakage (Stretch and Specialized) |
| Ducts fully inside envelope | 8.0 CFM25 / 100 sq ft (test still required) | Air handler + ducts in conditioned space |
IECC Duct Leakage Thresholds Reference
Beyond the Massachusetts tier that applies in Boston, these are the federal IECC duct-leakage limits across code editions. All values are CFM at 25 Pascals (CFM25) per 100 sq ft of conditioned floor area (CFA) unless noted.
2009 IECC
| Test stage | Measurement | Leakage limit |
|---|---|---|
| Postconstruction Leakage Test | Duct Leakage to Outdoors | ≤ 8 CFM25 / 100 sq ft CFA |
| Rough-in with AHU | Total Duct Leakage | ≤ 6 CFM25 / 100 sq ft CFA |
| Rough-in without AHU | Total Duct Leakage | ≤ 4 CFM25 / 100 sq ft CFA |
2012, 2015, 2018 & 2021 IECC — Prescriptive Paths
| Test stage | Measurement | Leakage limit |
|---|---|---|
| Postconstruction Leakage Test | Total Duct Leakage | ≤ 4 CFM25 / 100 sq ft CFA |
| Rough-in with AHU | Total Duct Leakage | ≤ 4 CFM25 / 100 sq ft CFA |
| Rough-in without AHU | Total Duct Leakage | ≤ 3 CFM25 / 100 sq ft CFA |
2015 & 2018 IECC — Performance Path (Cost Compliance)
Leakage testing is required unless all ducts and air handlers are located entirely within the thermal envelope. There is no pass/fail threshold for duct leakage on the performance path.
2024 IECC — Prescriptive Path
| Conditioned floor area | Condition at test | Total leakage limit |
|---|---|---|
| >1,000 sq ft CFA | Space-conditioning equipment not installed | < 3 return grilles: ≤ 3 CFM · 3+ return grilles: ≤ 4 CFM |
| >1,000 sq ft CFA | All components installed | < 3 return grilles: ≤ 4 CFM · 3+ return grilles: ≤ 6 CFM |
| >1,000 sq ft CFA | Equipment not installed, ducts entirely in conditioned space | < 3 return grilles: ≤ 6 CFM · 3+ return grilles: ≤ 8 CFM |
| >1,000 sq ft CFA | All components entirely in conditioned space | < 3 return grilles: ≤ 8 CFM · 3+ return grilles: ≤ 12 CFM |
| ≤1,000 sq ft CFA | Equipment not installed | ≤ 30 CFM |
| ≤1,000 sq ft CFA | All components installed | ≤ 40 CFM |
| ≤1,000 sq ft CFA | Equipment not installed, ductwork entirely in conditioned space | ≤ 60 CFM |
| ≤1,000 sq ft CFA | All components entirely in conditioned space | ≤ 80 CFM |
How Duct Leakage Testing Works in Boston
A duct blaster seals off your HVAC system and pressurizes it to 25 Pascals. The airflow needed to hold that pressure is your leakage rate in CFM25 — the lower the number, the tighter the ducts.
Common Sources of Duct Leakage We Check in Boston
Most duct leakage comes from a short list of predictable weak points. Knowing where to look is what turns a CFM25 number into a fixable list of locations.
Boot & register connections
The joint where a duct boot meets the drywall is the single most common leak point — often left unsealed behind the register grille.
Plenum & air-handler seams
Sheet-metal plenums and the cabinet of the air handler leak at seams and access panels unless mastic-sealed.
Disconnected flex runs
Flexible ducts can pull loose at collars or get crushed above insulation, dumping conditioned air into the attic.
Panned-joist returns
Return cavities framed from floor joists or wall studs are notoriously leaky and can draw in unconditioned air.
Building-cavity returns
Using framing cavities as return ducts pulls air from attics, garages, or crawlspaces instead of living space.
Trunk-line joints
Long supply trunks flex and separate at joints over time, especially where they were only taped rather than sealed with mastic.
Why Tight Ducts Keep Heat In Your Boston Home
In Boston, leaky ducts quietly waste a large share of what your furnace or heat pump produces, sending warm or cool air into spaces no one lives in.
A verified-tight duct system means a right-sized furnace or heat pump can deliver its full output where it's needed, steadying comfort and cutting waste.
What Your Boston Duct Test Report Includes
You get a document your building department and HERS software will accept the first time — not just a number.
- ✓The test method used (rough-in or post-construction) per ANSI/RESNET/ICC 380
- ✓Documentation formatted for your HERS rating and building-permit file
- ✓A punch list of leak locations if a re-seal and retest is needed
- ✓Measured total duct leakage in CFM at 25 Pascals (CFM25)
- ✓Leakage normalized per 100 sq ft of conditioned floor area
- ✓Clear pass/fail against the 4.0 CFM25 limit that applies in Boston
Best Fit for Projects Like
- Boston projects that need both envelope air-tightness and duct testing documented in one visit
- Rough-in duct tests before the air handler is set, which must hit 3.0 CFM25 per 100 sq ft
- Heating and cooling alterations that add or extend ductwork in Boston
- Retest visits after sealing failing seams and boots to confirm compliance
- Homeowners chasing comfort fixes for hot-and-cold rooms caused by duct leaks
Duct Leakage Testing Boston MA Facts
- Under the Specialized (Opt-In) Code, total duct leakage must not exceed 4.0 CFM25 per 100 square feet (8.0 when every duct is inside conditioned space), and every ducted system is tested.
- A tight duct system lets a right-sized furnace or heat pump deliver its full rated output to the rooms that need it.
- For a total duct leakage test, a window or door is left open to outside so the test fan measures the ducts alone and not the house.
- When supply leaks dominate, the house runs slightly negative to outside; when return leaks dominate, it runs positive — both pull unconditioned air through the envelope.
Trusted for Duct Leakage Testing Boston MA
Our Massachusetts Service Locations
Serving clients from our Massachusetts locations in Everett, Somerville, and Framingham.
Everett Location
371 Main St
Everett, MA 02149
Somerville Location
519 Broadway
Somerville, MA 02145
Framingham Location
68 South St
Framingham, MA 01702
Duct Leakage Testing for Boston Homes
Boston has been on the Massachusetts Specialized (Opt-In) Code since January 1, 2024, according to the state's municipal adoption list. The duct rules are the same ones Stretch Code towns use: every ducted heating or cooling system in a new Boston home gets a total duct leakage test, no matter how small the system is.
The numbers your Boston report has to show
- Total leakage at or below 4.0 CFM25 per 100 sq ft of conditioned floor area.
- Up to 8.0 CFM25 per 100 sq ft when every duct and the air handler sit inside conditioned space. The test is still required.
- A rough-in test while ceilings are open, a final test once registers and the air handler are in, or both.
Half of Boston's housing was built before 1940, and two- and three-family buildings, including the classic triple-decker, make up a large share of it, according to the city's Housing Conditions report. In those gut rehabs and conversions, new ducts usually land in attics, kneewalls and basements. That is where we find the leaks: boot-to-drywall gaps behind ceiling registers, unsealed air handler panels, flex ducts pulled loose from their collars, and open joints on long basement trunks.
Ducted heat pumps are the norm on Specialized Code projects. A leaky return pulls in attic or basement air, so the system works harder and the rooms at the end of a long run never feel right. Duct leakage is also entered in the HERS model, so tight ducts protect your score.
Before the final, Boston's Inspectional Services Department needs the signed duct test report. ISD inspections are booked by phone at 617-635-5300 or online through the Boston Permits portal, and an inspector contacts you within 48 hours to confirm. Boston jobs are covered from our Everett office at 371 Main St.

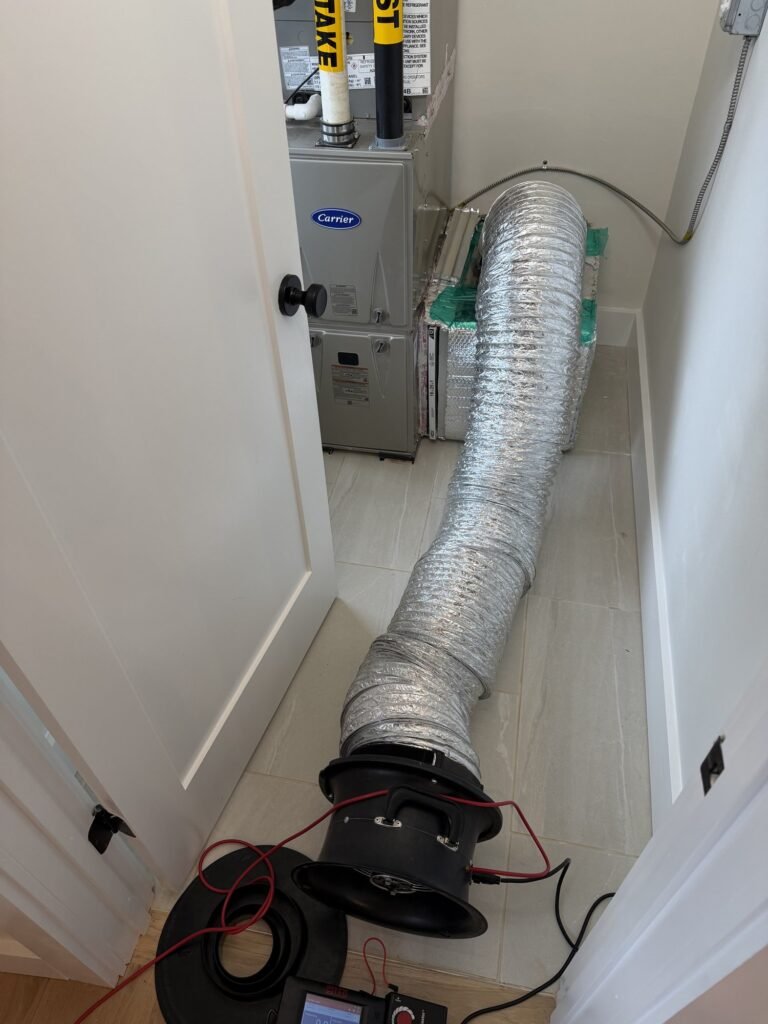

Real duct leakage tests by HEEC for Boston projects
These are photos from Home Energy Efficiency Consultants duct leakage testing jobs in Massachusetts — the same equipment and setup our certified raters bring to Boston homes.
Duct Leakage Testing Boston MA FAQ
Duct Leakage Test Requirements for Boston Projects
Boston is one of the 60 Massachusetts communities on the Specialized (Opt-In) Code. New homes there are built on the same 225 CMR 22.00 testing requirements below, plus net-zero-ready provisions.
| Test | Limit (CFM25 per 100 sq ft of conditioned floor area) | Notes |
|---|---|---|
| Rough-in, air handler installed | 4.0 total leakage | ANSI/RESNET/ICC 380 or ASTM E1554 |
| Rough-in, air handler not installed | 3.0 total leakage | Air handler added later |
| Post-construction | 4.0 total leakage | Final test with the system complete |
| Ducts and air handler entirely inside the thermal envelope | 8.0 total leakage | Test is still required |
| Ventilation-only ducts | Exempt | Only if not tied into heating or cooling ducts |
Massachusetts measures total duct leakage; "leakage to outside" is not a code option. Under the Massachusetts amendment to R403.3.5, the test must be done by a HERS Rater, HERS Rating Field Inspector or BPI Certified Professional, with a signed report to the Boston building department. Mechanical ventilation airflow must also be tested and verified by a HERS Rater under R403.6.3.
Sources: 225 CMR 22.00 (2025 edition) and the 2021 IECC sections listed. Boston is in Suffolk County, served from our Everett (371 Main St) office.
Duct Leakage Questions from Boston Builders
What is the duct leakage limit for a new home in Boston?
4.0 CFM25 of total leakage per 100 square feet of conditioned floor area, at rough-in or after construction. If the air handler is not installed at rough-in the limit is 3.0, and if every duct and the air handler are inside the thermal envelope the limit is 8.0.
Can leakage to outside be used instead of total leakage?
No. The Massachusetts code (225 CMR 22.00 R403.3.5) measures total duct leakage. Leakage-to-outside tests are used by some programs, but not for code compliance here.
Who can perform the duct test in Massachusetts?
A HERS Rater, a HERS Rating Field Inspector or a BPI Certified Professional, under the Massachusetts amendment to R403.3.5. The tester signs a written report for the code official.
Is a duct test required if all ducts are inside conditioned space?
Yes. Massachusetts follows the 2021 IECC, which still requires the test but allows up to 8.0 CFM25 per 100 square feet when the ducts and air handler are entirely inside the thermal envelope.
Rough-in or final: which test is better?
A rough-in test catches leaks while every joint is still reachable, so fixes are cheap. A post-construction test confirms the finished system. Many builders do both to avoid surprises at final.
How much does duct leakage testing cost in Boston?
Our duct testing is $350 for the first ducted system and $250 for each additional system at the same address. It can be done in the same visit as the blower door test and HERS inspection.
Related: Blower door testing in Boston · HERS rating in Boston · Stretch Code help in Boston
Get Started With Duct Leakage Testing Boston MA
Fast scheduling and permit-ready CFM25 reports for Boston and all of Suffolk County.
Call 617-501-6788
Mass Save®-Listed HERS Rater
U.S. DOE Efficient New HomeTrusted Partner — Verified
ENERGY STAR®Partner
Phius CertifiedPassive House Verifier
ICCMember★★★★★136 Google
Reviews
The Phius Certified Verifier logo is used under license from Phius.
HERS Ratings Across Boston and Nearby Communities
Home Energy Efficiency Consultants rates new homes, additions, and major renovations throughout Boston — from Back Bay, South Boston, and Dorchester to Jamaica Plain and Charlestown. Every Boston project is filed with the City of Boston Inspectional Services Department (ISD), and we handle the energy model, blower door and duct leakage testing, and the compliance paperwork from start to finish.
We also serve the communities right around Boston, including Cambridge, Somerville, Brookline, Chelsea, and Everett. Our Somerville office at 519 Broadway is the closest of our four Massachusetts locations — see our Somerville office or call (617) 501-6788 to get a Boston rating on the schedule.
Boston Specialized Energy Code — HERS Index Targets
Boston enforces the Massachusetts Specialized (Opt-In) Energy Code. The required HERS score depends on fuel type and project scope — a lower index is stricter.
| Project type | Mixed-fuel | Mixed-fuel + solar | All-electric | All-electric + solar |
|---|---|---|---|---|
| New construction | HERS 42 | 42 | 45 | 45 |
| New construction — embodied-carbon credit | 45 | 45 | 48 | 48 |
| Accessory dwelling unit (ADU) | 52 | 55 | 55 | 58 |
| Major alteration / renovation / change of use | 65 | 70 | 70 | 75 |
A HERS rating is triggered by new construction, additions over 1,000 sq ft (or more than 100% of the existing conditioned area), and Level 3 alterations over 1,000 sq ft affecting more than 50% of the home. New homes must also pass a blower-door test at 3.0 ACH50 and include electrification-ready wiring for heat pumps, EV charging, and solar. We model your Boston project up front so you know the exact target and the fastest path to hit it — call (617) 501-6788.
